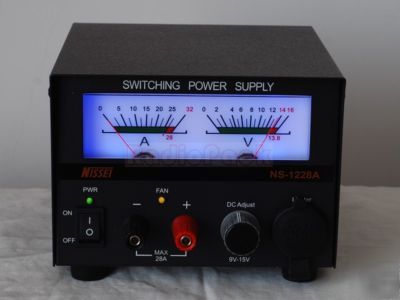

Nissei(mfj) ms-1228A 28AMPS switching power supply
This is a new in the box NISSEI MS-1228A It is upgraded model of NISSEI MS-280A / MFJ 4225MV (http:// /Product.php?productid=MFJ-4225MV)
MS-1228A Voltage Switching Power Supplies do it all! Power your HF or 2M/440 MHz radio and accessories.
MS-1228A weighs just 4.0 lbs/1.8kg.
These Switching Power Supplies meet all FCC class B regulations.
They are fully protected with Over Voltage and Over Current protection circuits.
The MS-1228A Switching Power Supply feature a front panel voltage control. It lets you vary the output voltage from 9 to 15 volts DC and gives you a highly regulated voltage output - this includes 12 Volt DC and 13.8 Volt DC!. You get an easy access front panel with five way binding posts for heavy duty use and a cigarette lighter socket for mobile accessories.
Input voltage AC 110V or 220V +/- 10% switchable
Output voltage 9 - 15V adjustable
Overvoltage protection 16V +/- 0.5V
Ripple & Noise Peak to peak ripple & noise < 0.3%
Dimension L/W/H (mm) 170x145x110
Short circuit and over voltage protection
Output power rated at continuous service
Binding post output terminals
Precision regulation of output voltage
Lowe peak-peak ripple of less than 0.3%
Heavy duty metal cabinet with power coating
Backlight LED with blue, vintage yellow, or white
Test equipment and appliances
Portable entertainment equipment and appliance
Vehicle accessories and Dclighting systems
