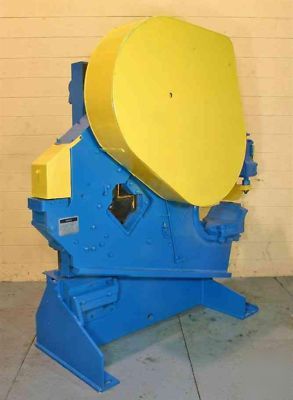

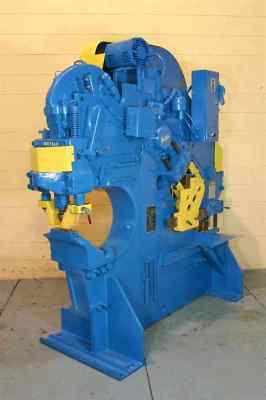

6" x 6" x 1/2" buffalo model #2-1/2 105 ton ironworker
6" X 6" X 1/2" BUFFALO MODEL #2-1/2 105 TON IRONWORKERSERIAL .................................. 77U4538
MODEL ................................... 2-1/2B
YEAR NEW ................................ 1977
PUNCHING CAPACITY........................ 105 TON
PUNCH CAPACITY: ......................... 1-7/16" THRU 7/8"
PUNCHING CAPACITY ....................... 1-5/16" THRU 1"

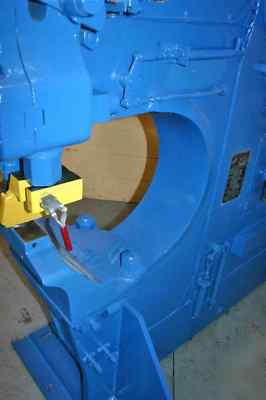

DEPTH OF THROAT ......................... 24"

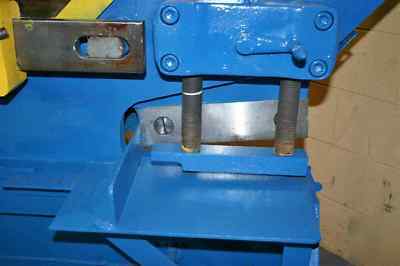

SHEAR CAPACITY PLATE .................... 3/4"
SHEAR CAPACITY FLATS .................... 7/8" X 6"
SHEAR CAPACITY ROUNDS ................... 2-1/4"
SHEAR CAPACITY SQUARES .................. 2"
90 DEGREE ANGLES ........................ 6" X 6" X 1/2"
45 DEGREE ANGLES ........................ 4" X 4" X 5/8"
LENGTH OF KNIVES ........................ 14"
CHANNELS ................................ 10"

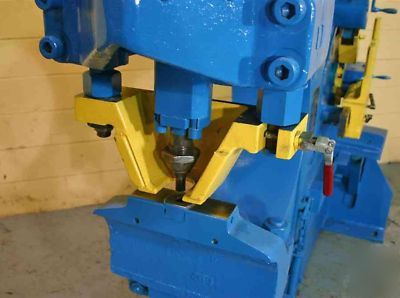

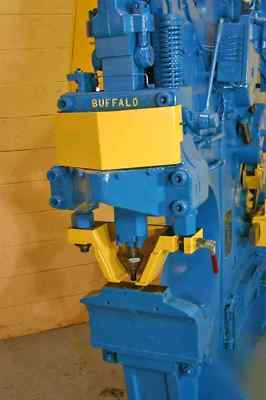

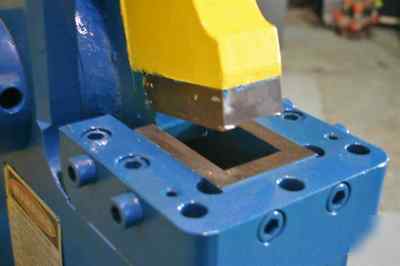

NOTCHER ON PUNCH END .................... YES
COPER ON SHEAR END ...................... YES
MOTOR ................................... 7-1/2 HORSEPOWER
