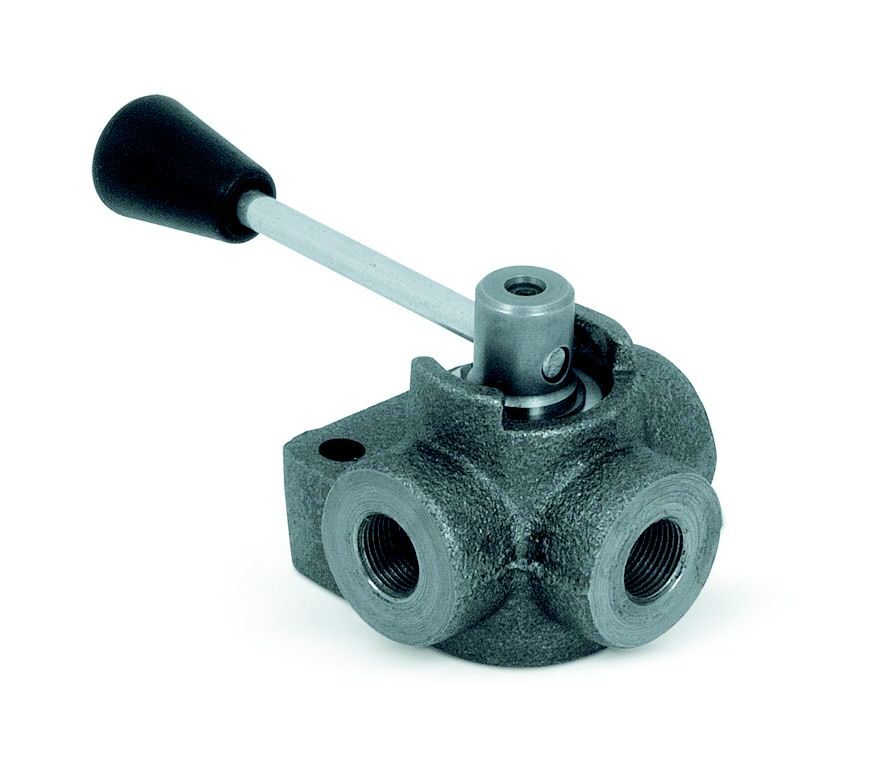

3/8" 4 way hydraulic diverter valve 4 way
3/8" 4 WAY HYDRAULIC DIVERTER VALVE 4 WAY
3/8" 4 WAY HYDRAULIC DIVERTER VALVE.
4 Way divertors are used to divert the flow towards 2 different outlets.
* Low leakage. Closed available on request.
* Connect P to the pressure flow, A and B to the circuit ports where the flow has to be diverted. With the lever in position 1, the flow is connected towards port A: with the lever in position 2, the flow is connected towards port B. With the lever in the central position, ports nP,A and B are all connected (open centre).
