Leviton non-nema locking plug 50A 125V marinco
Leviton NON-NEMA Locking Plug 50A 125V Marinco

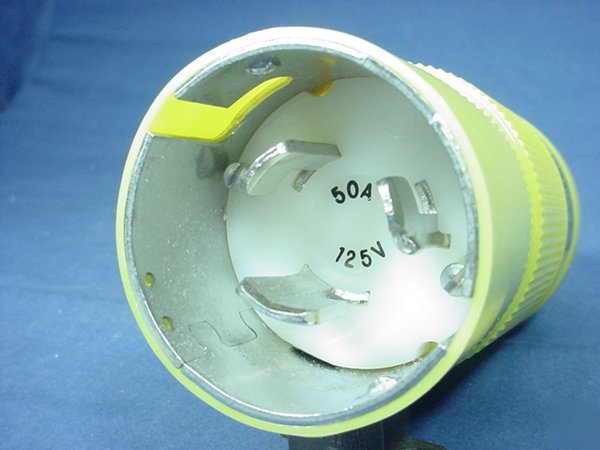

Leviton 6361-CR corrosion resistant locking plug. Designed for high-power marine applications. Industrial Specification Grade, Non-NEMA, 2-pole, 3-wire, grounding, rated 50A 125V. Leviton s corrosion resistant devices are specifically designed for extremely damp and corrosive environments. They offer additional corrosive resistance because the metal parts (blades, contacts, terminals and screws) are nickel-plated. Features include:
* All current carrying metal parts (blades, contacts, terminals and screws) are electroless nickel-coated
* Solid brass blades held tightly in individual module configurations
* Plug blades avoid contaminants in interior chamber
* Captive, brass #8 terminal screws are color coded for easy wiring identification: green (ground), brass (hot) and silver (neutral)
* Wire clamp provides positive crimp lock without cutting wire strands
* Stainless steel cord clamp opens wide for direct terminal access; added strip length for easy wire insertion into terminals
* Interior cord clamp opens wide to allow easy insertion of wires into terminals
* Neoprene gasket helps keep dirt and dust from entering termination area
* Mill-slotted, stainless steel cord clamp screws set in deep-funneled wells
* Heavy-duty, impact-resistant, super tough ST801 all-nylon body construction, with sure grip fluted design
* Non-magnetic stainless steel assembly screws will not interfere with sensitive navigational equipment
* Beveled rear housing prevents cord from getting caught on stairs, equipment, etc.
* Wiring module keyed to body for easy assembly and tight fit
Click here to see matching NON-NEMA Marinco 125V 50A plugs, connectors & receptacles. This is New Old Stock and is returnable for any reason. (SKU #L6361-CR-EA; 0.75 Pounds)
