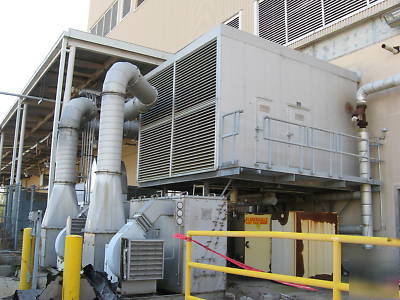

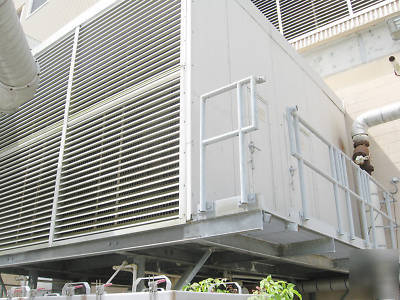

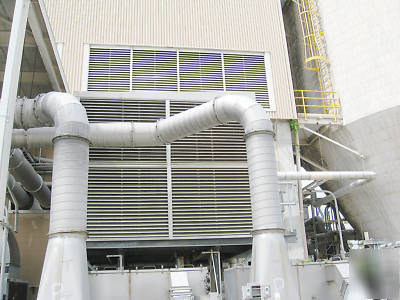

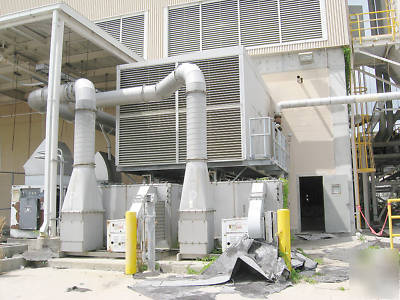

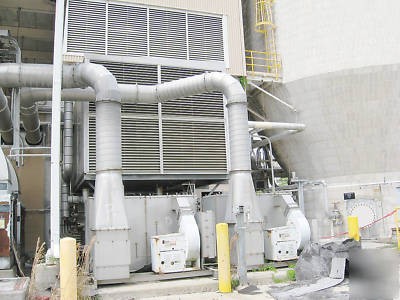

Jhk air make up unit, ventilation scrubber
JHK Air Make Up Unit, Ventilation Scrubber, Barnebey & Sutcliffe Activated Carbon Filter
W/(2) BARNEBEY & SUTCLIFFE ACTIVATED CARBON FILTER SYSTEMS
The following information was provided by the manufacturer s documentation (JHK):
(schematics can be faxed or emailed upon request)
Tank ventilation: 250 CFM per tank
Fan Cap: 3000 CFM at 5 water gauge
The following information was provided by the manufacturer s documentation (Barnebey & Sutcliffe Corp):
HDB: High Efficiency Carbon Absorber, Model HDB-2280-36
Weight: 1,555 empty, 5,155 installed
Blower: radial wheel / SWSI centrifugal
Housing and wheel: 316 Stainless Steel
Motor: vibration isolation, 7.5 hp, 194 DH series 20, 460/230/83/60
No of filters/ nominal size: (1)24 x24 x2 , (1) 12 x24 x2
HDB: High Efficiency Carbon Absorber, Model HDB-1525-36
Weight: 1,130 empty, 3,250 installed
Motor: vibration isolation, 5 hp, 194 DH series 20, 460/230/83/60
No of filters/ nominal size: 1-24 x 24 x 2
$ Rigging is an additional charge
