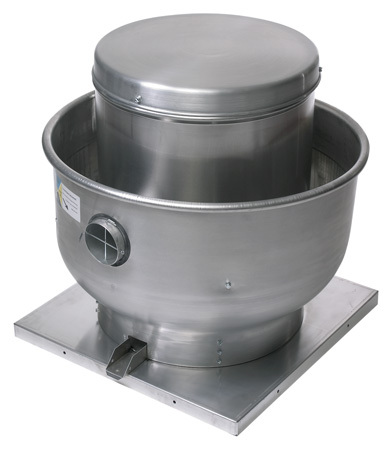

Fantech 5BDU20GB belt drive upblast roof/wall vent 20"
Fantech 5BDU20GB Belt Drive Upblast Roof/Wall Vent 20"
Centrifugal Belt Drive Upblast Ventilator with Single Phase Motor and Drive, 115/230 volt Open Dripproof, 20 inch Wheel Diameter, 1155 RPM, 1-1/2 HP
Belt-Drive Upblast Ventilators are Designed for Roof or Wall Mounted Exhaust for Commercial or Industrial Buildings
Fantech 5BDU20GB Belt-Drive Upblast Centrifugal Roof and Wall Ventilators
* All Ventilators are UL Standard 705 Listed
* All Ventilators are UL Standard 762 (Subject YZHW) Listed When Sold Complete With Motor and Variable Pitch Drive
* Complies With NFPA 96 Application Requirements
* All Motor and Drive Packages Comply With The Minimum Efficiency Levels Of Epact 92. Affected Motors Bear The Seal
* Ventilators are CSA Listed According to Standard C22.2 No. 113-M1984 (Fans & Ventilators)
* Spun Aluminum Construction With Steel Support Braces
* Weather Resistant Aluminum Windband, Motor Enclosure, and Cover
* Ball Bearing Motors and Variable Pitch Drives are Packed Separately When Ordered With Ventilators
* Backward Inclined Aluminum Fan Wheel
* Externally Cooled Motor Compartment
* Inlet Temperatures Up to 300 F
* Models 5BDU10 5BDU24 Only, are Wall Mount Capable
* Models 5BDU13 5BDU36 Available In Hazardous Location Configuration
* Motor and Wheel are Easily Detachable Without Removing Ventilator From Curb
* Junction Box Mounted In Motor Compartment
* A Continuous Venturi to Windband Weld Virtually Eliminates Grease Leakage
* Fully Rolled Windband Bead For Added Strength, Stability and Ease Of Transport
* Welded Curb Cap Corners Eliminate Water Entry Into Ducts or Building
Warning: Do Not Use A Damper In Any Kitchen Exhaust Application.* Non Kitchen Applications May Use A Non Ventilated Curb.
* DIMENSIONS: 36.5 in. L X 30.25 in. W
* VENTURI GUAGE ( in.): 0.063
