Facts engineering output module F2-08TA 8 out 140 vac
Facts Engineering Output Module F2-08TA 8 Out 140 VAC

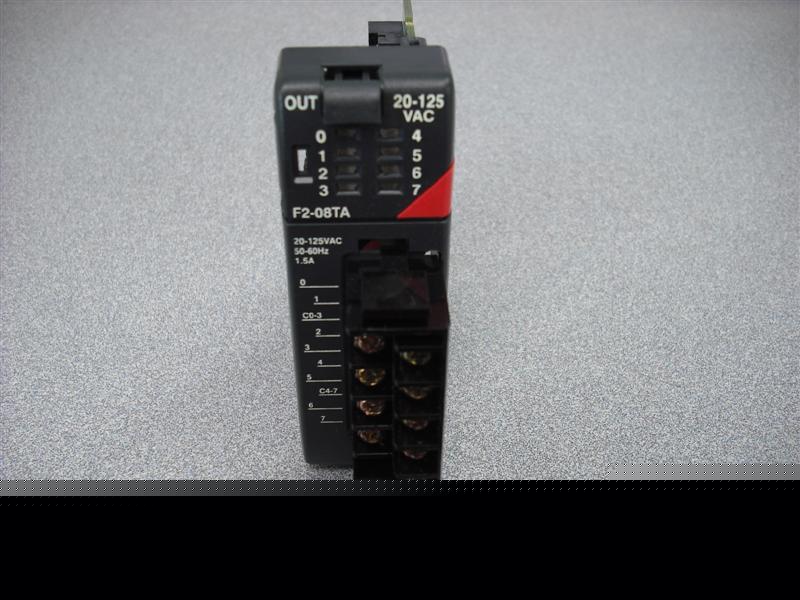

Facts Engineering Output Module F2-08TA
* Commons per Module: 2 (Isolated)
* Output Type: SSR (Triac with zero crossover)
* Operating Voltage: 24-140 VAC
* ON Voltage Drop: 1.6 V(rms) @ 1.5A
* Minimum Load Current: 50 mA
* Max Leakage Current: 0.7 mA(rms)
* Peak One Cycle Surge Current: 15A
* Base Power Required: 5VDC 250 mA
* OFF to ON Response: 0.5 ms - 1/2 cycle
* ON to OFF Response: 0.5 ms - 1/2 cycle
* Terminal Type (included) Removable; D2-8IOCON
* Status Indicator: Logic side
