Tektronix 104 ntsc video test signal generator w/manual

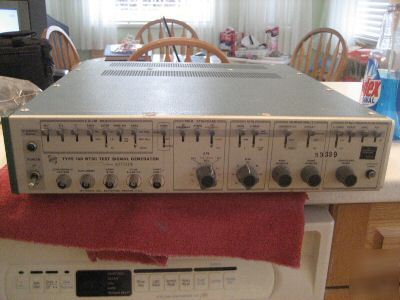

TEKTRONIX 104 NTSC TEST SIGNAL GENERATOR
COMES WITH A PHOTOCOPY OF THE COMPLETE TEKTRONIX OPERATING AND SERVICE MANUAL

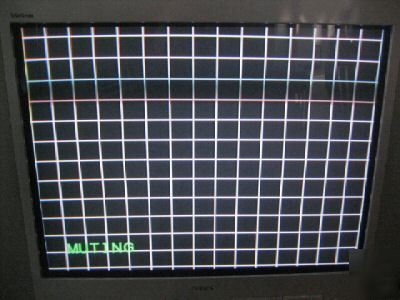

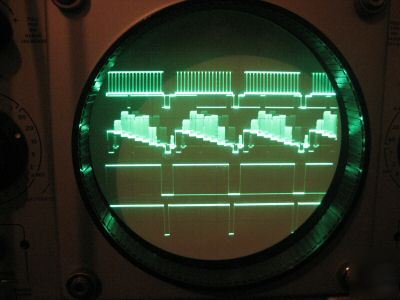

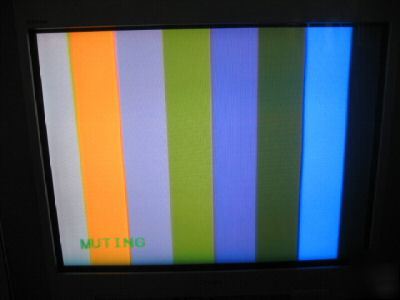

The Tektronix 140 is a compact, solid state source of high-quality television test signals for 525 line, 60 Hz NTSC color TV systems. Three operating modes provide NTSC color bars, 5 step staircase with variable Average Picture level, and 5 step staircase with fixed Average Picture level. A convergence signal is available indepedent of and seperate from the other test signals. The self-contained sync generator includes a temperature controlled color standard with excellent frequency stability. Provides the following: NTSC color bars, modulated staircase, vertical interval test signals, sync generator and color standards, and convergence pattern.
This unit came from the Tektronix factory. It is in good mechanical condition and fully operational. It is covered by our 30-day money back guarantee.
More information: http:// /Measurement/App_Notes/25_7049/eng/section2.pdf
