Sutron wind anemometer - platinum head

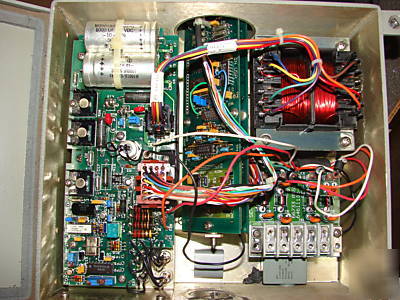

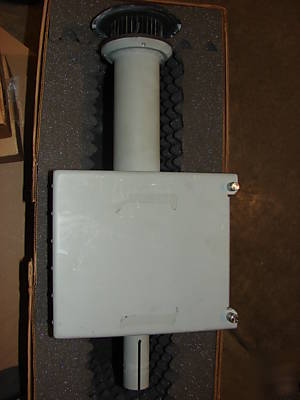

R.M YOUNG ANEMOMETER WITH A SUTRON INTERFACE. WITH THE INTERFACE ANEMOMETER CAN BE USED WITH ANY ANALOG/DIGITAL LOGGER TO SHOW WIND DIRECTION AND SPEED. THESE WERE USED BY THE MILITARY AT AIRPORTS. W/PLATINUM HEAD. SPECS AS FOLLOWS:
SENSOR, WIND DIRECTION & SPEED (DD FORM 61), WIND MEASURING SET (NSN)
BY HEATING THE RIGHT-ANGLE MOUNTED PLATINUM THERMAL ELEMENTS, WIND DIRECTION & SPEED ARE DETERMINED BY THE AMOUNT OF VOLTAGE NEEDED TO COMPENSATE THE THE COOLING ACTION BY THE WIND. SOURCE OF DATA DD FORM 61. REPLACEMENT FOR THIS ITEM IS R/N 1205139001
WIND SENSOR RANGE 0 - 150 KNOTS ( 0 - 173 MPH) ACCURACY: 0 - 5KNOTS +/-1KNOT, 5 - 99 KNOTS +/- 5 KNOTS, 99 - 150 KNOTS +/- 10 KNOTS; DIRECTION 360 DEGREES, ACCURACY 3 DEGREES; OPERATING TEMPERATURE -51 TO +68 DEG C
MOUNTED ON END OF SENSOR MAST GMQ-11/20, UTILIZING A U-CLAMP
47.0 HERTZ MINIMUM AND 63.0 HERTZ MAXIMUM
115.0 VOLTS MINIMUM AND 230.0 VOLTS MAXIMUM
WIND DIRECTION TRANSMISSION METHOD
WIND SPEED TRANSMISSION METHOD
