New graco hydra-mastic spray gun model 206–718

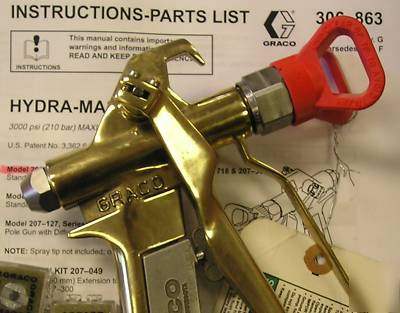

Here we have a new brass Graco HYDRA-MASTIC spray gun model number 206 718, Standard Gun with Diffuser.
3000 psi (210 bar) MAXIMUM WORKING PRESSURE.
Maximum Working Pressure . . . . . . 3000 psi (210 bar)
Fluid Orifice Size . . . . . . . . . . . . 0.17 in. (4.32 mm) dia.
Wetted Parts . . . . . . . . . . . . . . . . . . . Cast silicon brass,
Fluid Inlet Size . . . . . . . . . . . . . . . . . . . . . . . 1/2 npsm(m) = CAN REDUCE TO 1/4" HIGH PRESSURE HOSE IF THE NEED BE.
Height . . . . . . . . . . . . . . . . . . . . . . . . . . . 7.5 in. (216 mm)
Length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 in. (127 mm)
Width . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.6 in. (67 mm)
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 lb (0.9 kg)
Sound Pressure Level . . . . . . . . . . . . . . . . . . . 78 dB(A)
Sound Power Level . . . . . . . . . . . . . . . . . . . . . 87 dB(A)
*Measured while spraying water-base paint, gravity
1 36, through a 517 tip @ 3000 psi (bar) per ISO 3744.
Thiokol_ is a registered trademark of the Thiokol Chemical

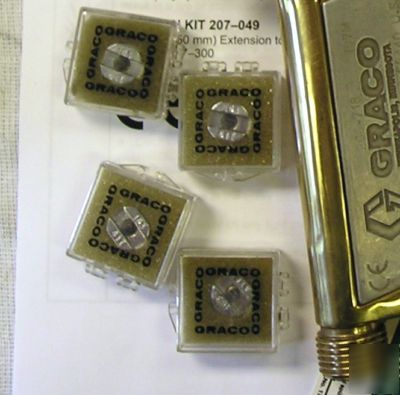

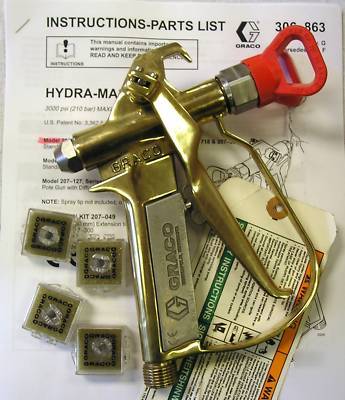

ALSO COMES WITH 4 163-417 TIPS/ 1 269-623 TIP / MANUAL & PARTS LIST
