> 2137 cincinnati bickford 4’ radial drill
2137 cincinnati bickford 4’ radial drill

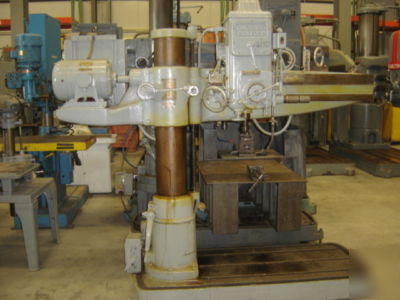

CINCINNATI BICKFORD 4 RADIAL DRILL
Length of arm and column diameter 4 x 9
Drills in center of circle 96
Distance spindle to base (min/max) 15 / 53
Horizontal travel of head 38

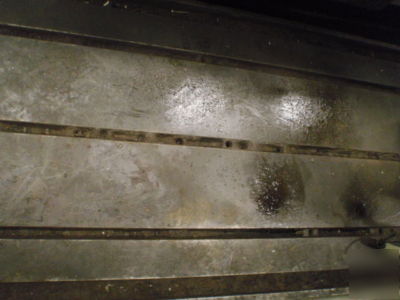

Base working surface 30 x 53
Feeds (4) (in thousandths per revolution) 4, 8, 14, & 20
Spindle speeds (9) 75-1500 rpm
Approximate floor space 36 x 72
Machine is equipped with forward and reverse and a box table.
