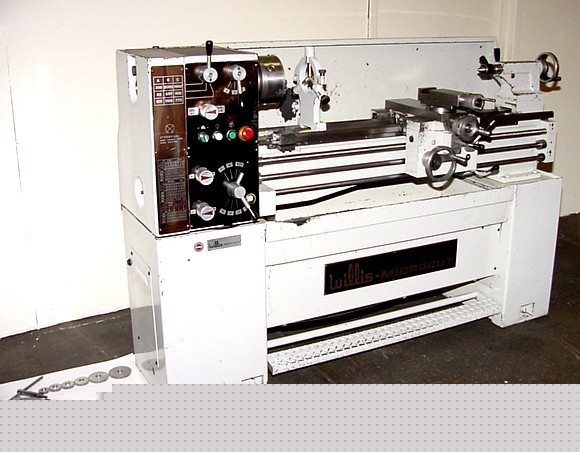

1999 willis 1440E 14"/20" x 40" gap bed engine lathe
1999 WILLIS 1440E 14"/20" x 40" GAP BED ENGINE LATHE
14"/20" x 40" WILLIS GAP BED ENGINE LATHE
MODEL: 1440E, S/N 861156, NEW:1999
SWING OVER BEDWAYS ................... 14-1/4"
SWING IN REMOVEABLE GAP .............. 20-1/4"
SWING OVER CROSS SLIDE ............... 8-5/8"
HOLE THRU SPINDLE .................... 1-1/2"
DISTANCE BETWEEN CENTERS ............. 40"
SPINDLE NOSE ......................... D1-4" CAMLOCK
SPINDLE SPEED RANGE (9) .............. 82 - 2000 RPM
ENGLISH THREADING RANGE (32) ......... 2-3/4 - 56 TPI
METRIC THREADING RANGE (30) .......... .4 - 7.2 mm
LONGITUDINAL FEED RANGE .............. .0026" - .064" IPR
CROSS FEED RANGE ..................... .0013" - .032" IPR
TAILSTOCK SPINDLE TAPER .............. #3MT
TAILSTOCK SPINDLE TRAVEL ............. 4-3/8"
APPROX FLOOR SPACE ................... 71"L x 20"W x 46"H
APPROX WEIGHT ........................ 1,500 LBS
