> 100 pcs sirenza SNA276 rf electronic components
100 pcs sirenza SNA276 rf electronic components

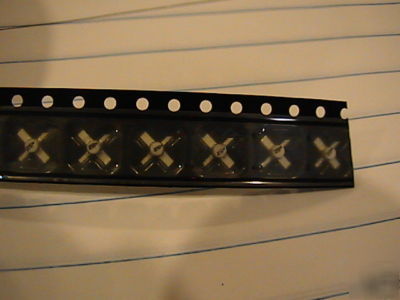

100 pcs cut tape Stanford Microdevices/SIRENZA SNA276 RF ELECTRONIC COMPONENTS
DESCRIPTION: RF Electronic Component RF Electronic Component Cascadable GaAs HBT MMIC Amplifier
Stanford Microdevices SNA-276 is a GaAs monolithic broadband amplifier (MMIC) housed in a low-cost surface mountable stripline package. This amplifier provides 16dB of gain when biased at 50mA and 4V. External DC decoupling capacitors determine low frequency response. The use of an external resistor allows for bias flexibility and stability. These unconditionally stable amplifiers are designed for use as general purpose 50 ohm gain blocks. Also available in chip form (SNA-200), its small size (0.33mm x 0.33mm) and gold metallization, make it an ideal choice for use in hybrid circuits. The SNA-276 is available in tape and reel at 1000, 3000 and 5000 devices per reel.
DC-6.5 GHz, Cascadable GaAs MMIC Amplifier
Product Features Cascadable 50 Ohm Gain Block 16dB Gain, +14dBm P1dB 1.5:1 Input and Output VSWR Operates From Single Supply Low Cost Stripline Mount Ceramic Package Hermetically Sealed 50 Ohm Gain Blocks Applications Narrow and Broadband Linear Amplifiers Commercial and Industrial Applications
