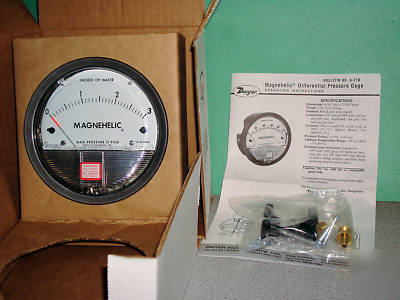

New dwyer 0-3 inches of water magnehelic pressure gage,
DWYER 0-3 Magnehelic Pressure Gauge, New
Excess stock item, 30 Day Warranty
* Cat # 2003C , Reads 0-3 inches of water,
* Dimension: 4- 3/4" Dia x 2 -3/16" Deep.
* Finish: baked dark gray enamel,
* Connections: 1/8" female NPT,
* High/Low Pressure taps, Duplicate pair on side and back.
* Accuracy +/- 2% full scale at 70 deg "F" (21.1 deg C)
* Ambient Temp Range: 20 to 140 deg "F" (-7 to 60 "C")
plus accessories : (2) 1/8" male NPT plugs, (2) 1/8" male NPT pipe thread adapters
and (3) flush mounting adapters w/ screws
