> Smc VV5Q24 manifold VQ2240 VQ2140 pneumatic valves 24V
Smc VV5Q24 manifold VQ2240 VQ2140 pneumatic valves 24V
Ultra High Speed Electrical Solenoid Valves, 24-VDC
SMC Manifold Model VV5Q24-ULB990270 for use with air or inert gas. EZL designation also on SMC label.
Body Ported Type Plug Lead Unit/Flip Type with the following:
Metal Seal Ultra High Speed Solenoid Valve Series VQ2000, Total Quantity (QTY) of 7 as follows:
* Model VQ2240-5LOB-CO Solenoid, 2-Position Double, Press. 0.1 -0.7MPa, Manual Override (Locking Type), QTY 3
* Model VQ2140-5LO-N7 Solenoid, 2-Position Single, Press. 0.1 -0.7MPa, Manual Override (non-locking type), QTY 4
C-Kit connectors with 3-wires (Black/Red/White) connecting to
F-Kit (D-Sub Connection) 25-Pin female connector and partial 25-Pin male connector. (Only 8 pins)
VVQ2000-10A-4 Block Plate and Inlet/Exhaust port blocks.

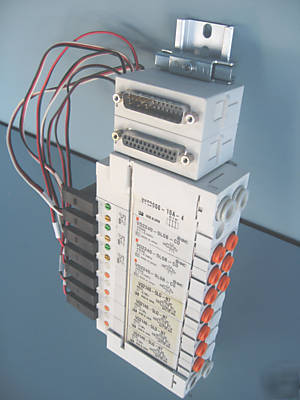

All of this is mounted in a DIN Rail Bracket as shown in picture
Minimum operating pressure 0.1MPa / 14.5PSI for both single and double cylinder ports. Max 0.75MPa / 109PSI.
No lubricant required. Life expectancy 200 million cycles or more.
Cylinder port "one touch" tube fitting orifice size 1/4" = 0.70 CV for VQ series 2000 solenoids and 5/16" for Inlet/Exhaust ports.
Coil Rated Voltage 24VDC, Class B, 1W
Dimensions: 10" Long x 5" Wide x 2" Deep, Weight approx. 4 Lbs
