New jet vertical millling machine 690401

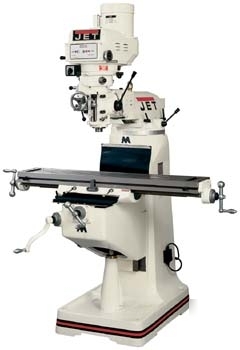

JET JTM-4VS, 1-Phase Vertical Milling Machine With ANILAM Wizard 411 DRO & X Axis TPFA
Spindle Taper R-8 Number Of Spindle Speeds Variable Range Of Spindle Speeds 60 - 4,200 RPM Down Feeds Of Spindle .0015 - .003 - .006 (per/rev./in.) T-Slots 3 Maximum Weight Of Work Piece 660 lbs. Net Weight 2,420 lbs. Quill Diameter 3-3/8" Motor 3 HP; 3 Ph 230/460V; Pre-wired 230V Table Size 9-in x 49-in Spindle Travel 5-in Head Movement 90 and 176; Right and ; Left; 45 and 176; Forward and ; Back Distance Spindle To Table 17-1/2-in Distance Spindle To Column 4-1/2-in (Minimum) Distance Spindle To Column 19-in (Maximum) Longitudinal Table Travel (X-axis) 34-in Cross Travel (Y-axis) 12-in Collet Capacity 1/8-in - 7/8-in T-Slots Size 5/8-in T-Slots Centers 2-1/2-in Travel Of Knee (Z-axis) 16-in Travel Of Ram 14-1/2-in Overall Dimensions 65-1/2-in x 63-in x 85-in
* JTM-4VS 1-Phase Vertical Milling Machine w/ ANILAM Wizard 411 DRO and X Axis TPFA - 690401
