Hp 53151A cw microwave counter / power measurement

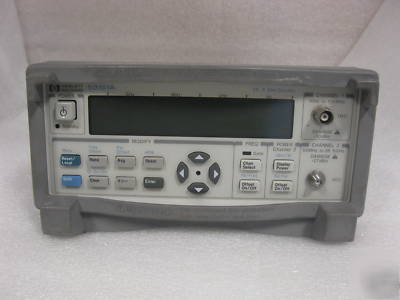

HP 53151A CW Microwave Counter / Power Measurement

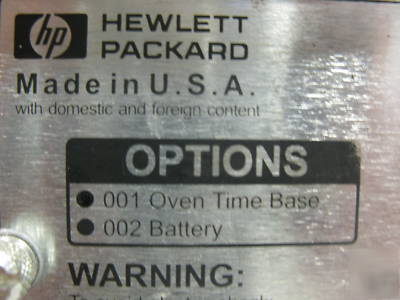

This Unit also has Option 002 which is the Battery pack but the Battery does not hold a charge very well but it works great with the power cord
The 53151A CW microwave counter is a full-featured CW microwave counter that is suited for benchtop, ATE environments, or field applications. It offers high performance with an ultra-wideband input (input 2) that covers the RF and microwave spectrum from 50 MHz to 26.5 GHz. Frequency and power are measured simultaneously with this same input.
* Frequency range: 10 Hz to 20.0 GHz; 10 Hz to 125 MHz (input 1), 50 MHz to 26.5 GHz (input 2)
* Sensitivity (input 2): -20 dB <250 MHz, -33 dB 250 MHz to 18 GHz, -29 dB 18 GHz to 20 GHz, -25 dB >20 GHz
* Maximum input: +5 dBm <2 GHz, +13 dBm >2 GHz
* Power measurement range: Counter sensitivity to +7 dBm
* Power measurement resolution: 0.01 dB
* Power measurement accuracy: 1.5 dB <12.4 GHz; 2.0 dB 12.4 GHz to 26.5 GHz
* Input impedance: 50 ohm (input 1), 1 megohm (input 2)
* 3.5mm (m) connector (input 2), BNC(f) (input 1)

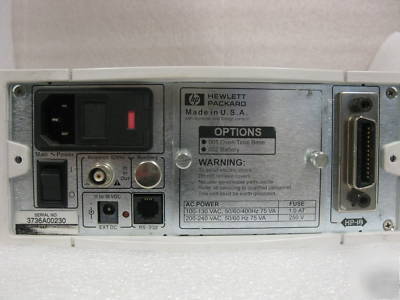

* GPIB (IEEE-488) and RS-232 interfaces
* Standard time base accuracy: 1 X 10-7th/month (5 X 10-10th/day with option 001)
* 90-132 Vac; 50, 60, 400 Hz / 216-264 Vac; 50, 60 Hz operation
* Weight: 9 lb; Size: 89 mm (3.50 in)H x 213 mm (8.35 in)W x 348 mm (11.8 in)D
