Epi fluorescence trinocular microscope + 3M fluo camera

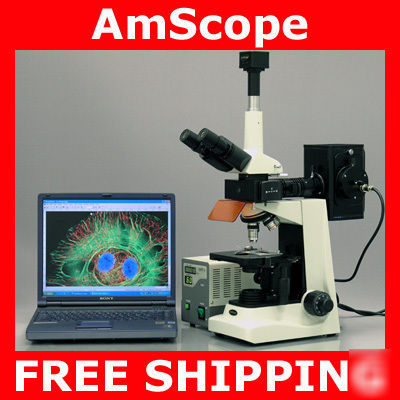

EPI FLUORESCENCE TRINOCULAR MICROSCOPE + 3M FLUO CAMERA
Brand Name: AmScope Model No: FM320-3M Retail Value: $9,800
* A Great EPI-Fluorescent and Transmitted Bright-Field Microscopy System with Fluorescent Digital Camera
* 3.0 Megapixel Low-Light, Low-Lux, True Color Digital Camera for Fluorescent Applications
* Capturing Fluorescence Microscope Images or Displaying Real-time Live Video on Your PC Screen
* Recording Live Video Images
* Saving Fluorescence Microscope Images in BMP, TIFF, JPG, PICT, PTL and Other Formats
* Editing Images as You Use Photoshop
* Conducting Measurement Across Images for Length, Angle, Area, and etc.
* Built-in Reduction Lens Giving Same Field of View Images on Your PC Screen as Those Seen Through Eyepieces
* Easy and Fast USB2.0 Connection, Installation and Operation
* User-Friendly Software Compatible with Windows 2000/XP/Vista
* Fully Coated Optical System with High Resolution
* Crystal Clear Sharp Images
* Four High Quality Fluorescent Plan DIN Objectives: FLUOR 4X, 10X, 40X & 100X
* Four High Quality Achromatic Objectives: 4X, 10X, 40X & 100X
* Eight Magnification Levels: 40X-64X-100X-160X-400X-640X-1000X-1600X
* 100W Fluorescent Light Source
* 100W HBO Ultra Hi-Voltage Spherical Mercury Lamp
* High Contrast EPI-Fluorescent Images
* Blue and Green Exciting Light and Ordinary Light Filter System
* Three-Position Fluorescent Filter Slider Assembly for Blue, Green, and Brightfield Microscopy
* 220V/110V (Interchangeable) External DIGITAL Power Supply (100W DC)
* Easy Control Design for Centering Arc of the Mercury Lamp
* Three-Setting Fluorescence Excitation Light Path Control Dial: No Light, Partial Light, Full Light
* Ultraviolet-Light-Free Front Light Baffle
* Kohler Illumination System with Field Diaphragm for Lighting Control
* Intensity-Variable Transmitted Halogen Lighting System
* Abbe Condenser with Iris Diaphragm and Swing-Out Filter Holder
* Rack and Pinion Adjustment for Condenser
* Large 3-D Double Layer Mechanical Stage
* Low Position Coaxial Stage Movement Control Knobs
* Dual Side Coaxial Coarse and Fine Focusing Control
* Adjustable Interpupillary Distance
* Adjustable Diopter on Ocular
* Durable Cast Alloy Frame & Stand with Stain Resistant Enamel Finish
* Four Plan Achromatic DIN Objectives
* Two Sets of Wide Field Eyepiece: Wide Field 10X (18mm Field of View) and P16X
* 30 Inclined, 360 Swiveling Compensation Free Trinocular Head
* Quadruple, Reversed, Extra-Large Nosepiece with Wide, Knurled Grip for Easy Operation
* Large Double Layer Mechanical Stage with Stain Resistant Finish
* Coaxial Coarse & Fine Focusing with CA Knob Tension Control
* Upward Stage Stopper to Protect Objectives and Slides
* Abbe Condenser with Iris Diaphragm & Swing-in Color Filters
* Built-In Variable Halogen Illumination System with Intensity Control
* A Wide Range of Accessories Available Including Phase Contrast and Darkfield Condensers
* Satisfaction Guaranteed or Money Back!
* Nosepiece: ball bearing quadruple
* Interpupillary Adjustment Mechanisms: 2-3/16" - 3-0" (55 - 75mm)
* Mechanical Tube Length: 6-5/16" (160mm)
* Head: trinocular anti-mould viewing head inclined at 45 degree
* Wide Field Eyepiece: WF10X (18mm Field of View), P16X
* Fluorescence DIN Objectives: FLUOR 4X (0.10 NA), 10X (0.25 NA), 40X (0.65 NA, Spring) & 100X (1.25 NA, Spring, Oil)
* Achromatic DIN Objectives: 4X (0.1 NA), 10X (0.25 NA), 40X (0.65 NA, Spring), 100X (1.25 NA, Spring, Oil)
* Stage Dimensions: 5-1/2"x 6-5/16" (140x160mm)
* Stage Traveling Range: 2-3/4"x 2-0" (70x50mm)
* Focusing Range: 1-3/16" (30mm)
* Division of Fine Focusing: 0.0000787" (0.002mm)
* Abbe Condenser: NA=1.25 with rack and pinion focusing control
* Illumination: halogen bulb, 6V/20W
* Power Supply: 110V and 220V, CE certified
* One Trinocular Compensation-Free Head
* One Microscope Body with Frame and Base
* Four Achromatic DIN Objectives, 4X, 10X, 40X and 100X
* Four Fluorescence DIN Objectives, FLUOR 4X, 10X, 40X and 100X
* One Complete Set of Fluorescence Kit
* One 3.0 MP Low-Light, Low-Lux, True Color Digital Camera
* One CD with Software & Manual, Driver, and User's Instructions
