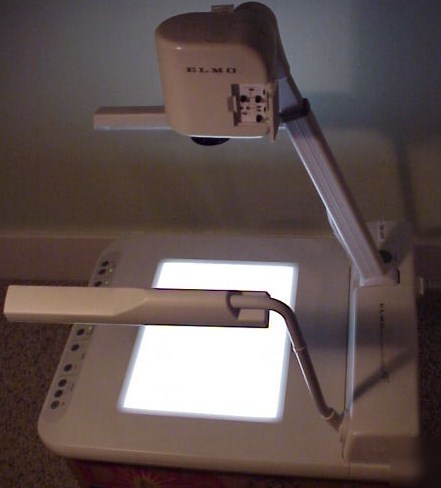

Elmo ev-400 af visual presenter magnifier document cam
Superior image quality. Elmo utilizes one of the finest 1/2" CCD (sensor) chips available. A 410,000 pixel chip horizontal resolution produces outstanding contrast and picture quality when capturing all types of 3D objects, slides, transparences, and opaque presentation materials.
Sync. System: Internal/external sync. (automatic changeover)
Output signal: C-video: VBS 1.0 Vp-p/75 ohms unbalanced; S-video Y: 0.714 Vp-p/75 ohms unbalanced; S-video C: 0.286 Vp-p/75 ohms unbalanced
Upper lighting unit: Built-in, 3 band fluorescent lamp 6Wx2
Television System: NTSC compatible
Iris: Auto/Manual(with fine adjustment)
Picture element: 811(H)x508(V)
Resolution - Horizontal: More than 450 TV lines (Y signal)
Baselight: Built-in, lighting area: 296x216mm
Operating Temperature: +5 degrees C~+40 degrees C (37 degrees F~72 degrees F)
Remote terminal: RS-232C (DSUB 9P) x 1, Manual remote (DIN 8P) x 1
Dimensions-when set-up: 690(W)x545(D)x653(H)mm (27.2x21.5x25.7in.)
Dimensions-when folded: 450(W)x545(D)x203(H)mm (17.7x21.5.x8.0in.)
Image pick-up element: 1/2" interline-transfer CCD
S-video input: Mini DIN 4P connector/75 ohms unbalanced x2
Ext. sync. Frequency range: (against NTSC standard) H+/-20ppm SC+/-50ppm
H-phase adjustment: Manual (0us~8us)
SC-phase adjustment: Manual (0 degrees~360 degrees)
Electronic shutter: 1/60 sec. Or 1/100 sec.
Nega/posi conversion: Built-in (C-video, S-video)
Audio output: RCA jack/10k ohms or more, -10dB x1 (monophonic)
Input selection: 3 modes (internal/AV1/AV2)
AC outlet: Max. 400W, unswitched
C-video input: RCA jack/75 ohms unbalanced x 2
Ext. sync. input: BNC connector/75 ohms unbalanced x 1
Mic. Input: 6.3mm jack/600 ohms, -65dB x1
Audio input: RCA jack/10k ohms or more, -10dB x 2
C-video output: RCA jack/75 ohms unbalanced x 1; BNC connector/75 ohms unbalanced x 1
S-video output: Mini DIN 4P connector/75 ohms unbalanced x1
Color/B&W selection: Built-in (C-video, S-video)
Ext. sync. Input condition: C-video VBS 1.0 Vp-p/75 ohms unbalanced; Sync: 0.286 +/- 0.1 Vp-p, Burst: 0.286 +/- 0.1 Vp-p
A Nice Addition To Any Office, Home or College.
