> Advance cb-ss-304M work table with cabinet base, flat t

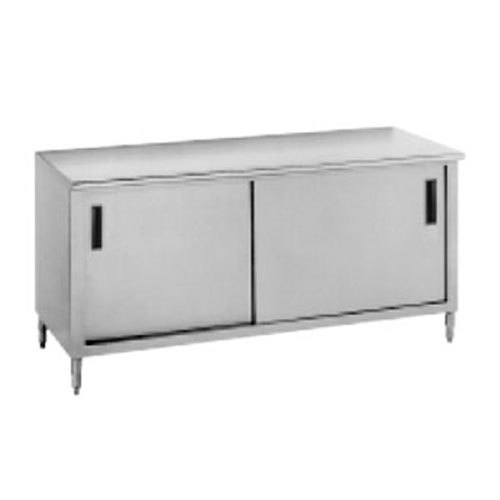

Advance cb-ss-304M work table with cabinet base, flat t
Work Table with Cabinet Base, Flat Top, (2) Sliding Doors, 30" Deep x 48" Long With MidShelf
Work Table, cabinet base with sliding doors, 30" wide, 14/304 stainless steel top, without splash, 48" long, s/s bullet feet, with midshelf
* STAINLESS STEEL SLIDING DOOR STYLE ENCLOSED BASE WORK TABLES, NSF
* FEATURES: FLAT TOP is furnished with a 1 5/8 sanitary rolled rim on the front and 1 5/8 square bend edges on the 2 sides and rear.
* SLIDING DOORS have recessed handles for ease in opening and closing.
* All TIG welded. Exposed areas finished to match adjacent surfaces.
* Entire Top is mechanically polished to a satin finish and is sound deadened.
* Hat section secured to Top reinforces and maintains level working surface.
* UNIT-BODY DESIGN sides, back and shelf are welded to form a single rigid structure.
* Gussets welded to support hat sections.
* TOP is 14 gauge stainless steel type 304 series with galvanized understructure.
* BODY is 18 gauge stainless steel type 430 series.
* LEGS are 1 5/8" diameter tubular stainless steel with stainless steel
* gussets and 1" adjustable stainless steel bullet feet.
* Manufacturer: Advance Tabco
