Prince hydraulic hand pump, 3000 psi, model# pm-hp-10B

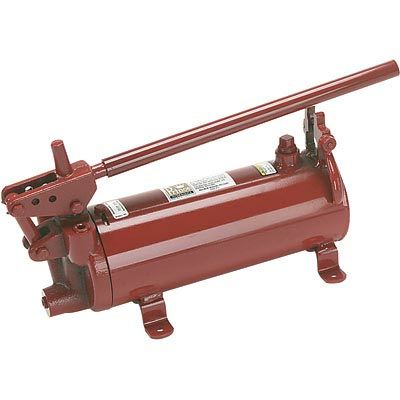

Prince Hydraulic Hand Pump, 3000 PSI, Model# PM-HP-10B
Powerful! Operates a hydraulic press, dump, plow, snowblade, platform, frame straightener or similar equipment. 3 positions: 1) 1.25 cu. in. per stroke @1500 PSI, 2) .95 cu. in per stroke @ 2000 PSI, 3) .60 cu. in. per stroke @3000 PSI. One gallon reservoir. Inlet check valve, release valve. Pressure port 3/8in. NPT. Applied handle force 60-65 lbs. Use on up to 200 cu. inch, single- or double-acting cylinder. 16 1/2in.L. U.S.A.
