Pelican 9450 rals remote area lighting station
The First 17 Hour Off-Road Emergency Light

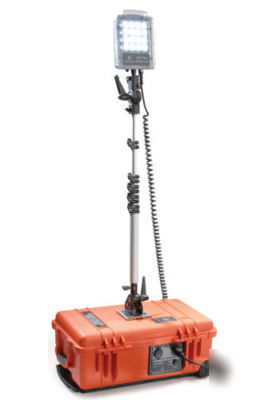

The Pelican 9450B Remote Area Lighting System is a self-contained system wheeled system that can be easily moved around and set up quickly. The 9450B R.A.L.S. Remote Area Lighting System combines our tough 1510 Carry On Case with 16 x 1 watt Luxeon LEDs mounted in an aluminum heat sink. All items are stored inside the case and assemble in minutes. The aluminum pole extends to a height of 83" to provide 1280 lumens of light for any area. The rechargeable battery has 9 hours of life at maximum output tailing off to low light level at hour 17. The diffuser (included) can be mounted to change the beam from a focused spot to a diffused beam. The Pelican 9450B Remote Area Lighting System R.A.L.S. has an auxiliary socket that provides power to a 12 volt device.
9450 Enhancements - Improvements have been made to the 9450 R.A.L.S. Remote Area Lighting System:
* Booklet and reference card included
* Push to activate battery status indicator lights
* Pole storage located conveniently inside the base of the case.
* Light Source: 16 LEDs ; each 1 watt Luxeon LED
* Tested Lumen Value: 1280.0 (On High Power)
* Tested Lux Value (@ 1 Meter): 8,000 without Diffuser
* Tested Lux Value (@ 1 Meter): 250 with Diffuser
* Batteries: 1 Sealed Lead Acid (500 cycles)(IATA Approved)(Included)
* Battery Burn Time: 17 hrs (On Low Power)(Total Output)
* Battery Burn Time: 9 hrs (On High Power)(Peak Output)
* Battery Pack/Charging Time: Integrated/6 hrs from full discharge
* Weight w/ Batteries: (46 lbs)(20.87 kg)
* Width Closed: 22" (55.9 cm)
* Length Closed: 13.81" (35.1 cm)
* Height Closed: 9" (22.9 cm)
* Mast Height Extended: 83" (210.7 cm)
* Auxiliary socket provides power to a 12-volt DC device
* Visible for over 100 yards
* Battery charges in 6 hours
* Charge retention: 97% @ 1 month, 91% @ 3 months, 85% @ 6 months.
* Light assembly and extension pole store inside Pelican 1510 with wheels and extension handle.
* Backed by Pelican's Unconditional Lifetime Guarantee
