doall 16†model 1613-2 16 vertical band saw machine
* Doall 1613-2 16" throat BAND SAW

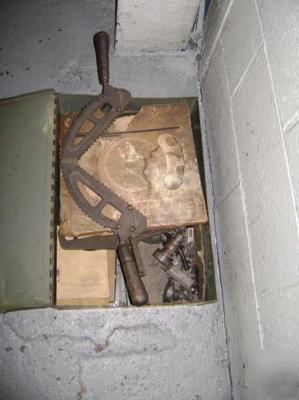

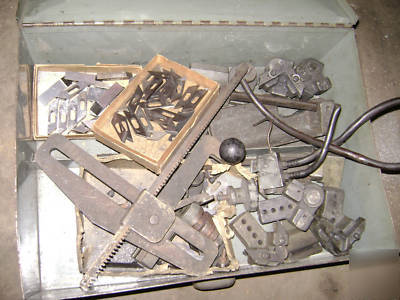

* box of extra parts blade guides
* pedal for table is there, but other bolt on parts missing ( see pic )

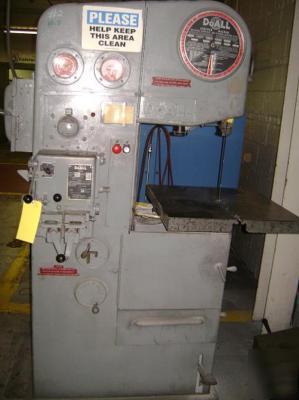

USED 16" DOALL CONTOURMATIC VERTICAL BAND SAW
Maximum Work Thickness: 12"
Table Size: 24" L-R x 30-1/2" F-B
Table Tilt: 45dg To Right
Band Size: 125" Length x 1" Thick
Upper Wheel Adjustment: 3-1/2"
Floor To Top Of Table: 45"
Band Speeds Approx: 35-6000 FPM
Equipped With: Model DBW-8 Doall Welder, Grinder &

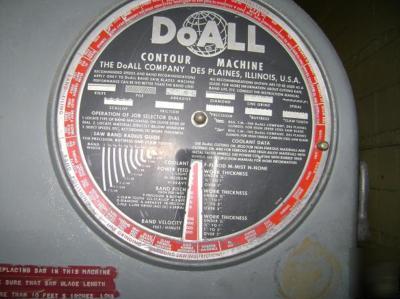

Doall Band Speed & Band Tension
Push Buttons For Start - Stop
Selector Switch For Straight-Contour

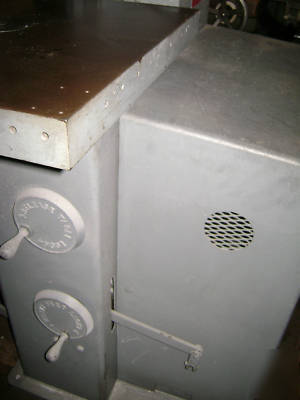

Variable Speed Control Via Hand Wheel
Gear Shift Lever For Medium - High - Low
Drum Switch For Reverse - Stop -
2 HP 1745 RPM 208-220/440/3/60 V/S
Overall Dimensions Approx. 48" L-R x 60" F-B x 80" H
