V block (1) offset jig grind/bore machinist/toolmaker


V BLOCK (1) WITH (1) CLAMP AND (2) VEES MADE OF HARDENED AND PRECISION GROUND A-2 AIR-HARDENED TOOL STEEL USED BY AMERICAN MACHINIST AND TOOLMAKERS ALIKE. TOOLMAKER COPIED THE FAMOUS STARRETT 567 V-BLOCK AND I HAVE THOSE ALSO LISTED. MADE BY 30 YEAR TOOLMAKER YOU WILL FIND NONE BETTER!!!!! V BLOCK IS IN EXCELLENT CONDITION HAVING BEEN ORIGINALLY GROUND USING A HERMANN SCHMIDT SQUARING BLOCK AND MAGNA-SINE ON A BALLWAY SURFACE GRINDER. BLOCK HAS PRECISION GROUND CHAMFERS ALSO. I HAVE MANY OF HIS TOOLS LISTED HE DOES EXCELLENT WORK LOOK FOR THE INITIALS RRH!!!
V BLOCK MEASURES 4.004" LONG x 2.021" WIDE AND IS 1.933" TALL. THE VEE WIDTH IS APPX 1.25" OR 1-1/4". BLOCK BODY IS ALSO DRILLED AND TAPPED #10 X 32 (15 total) TIMES TO ATTACH AS NEEDED TO ANGLE PLATES, SINE PLATES AND HARIG FIXTURES AND OF COURSE TO MOUNT THE CLAMP AS SHOWN.

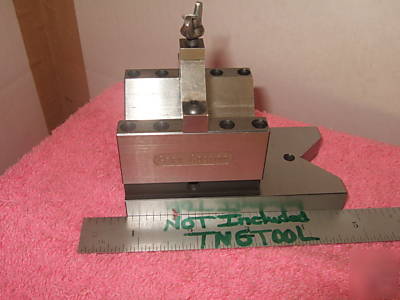

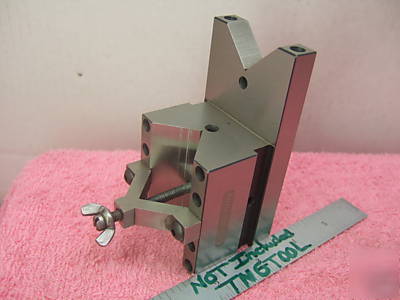

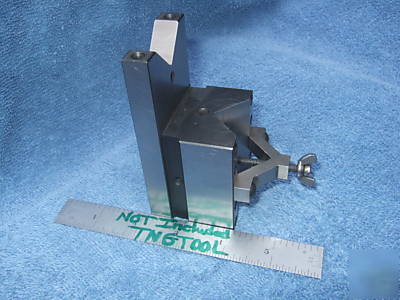

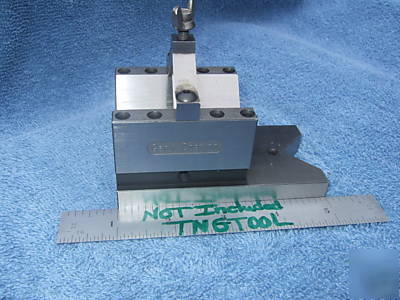

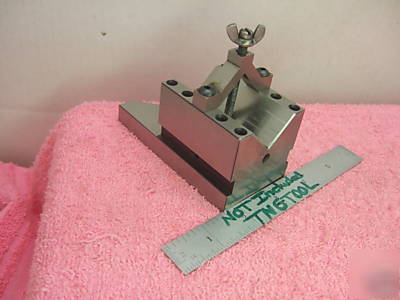

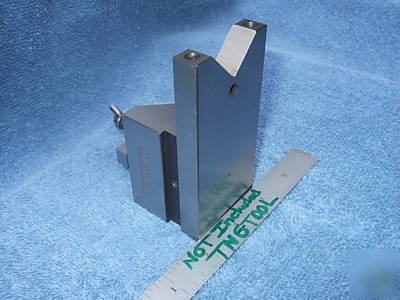

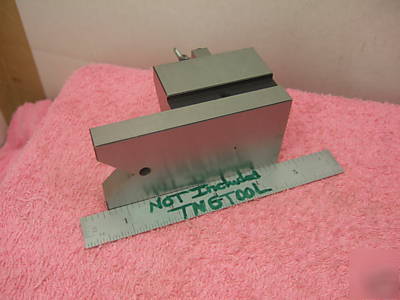

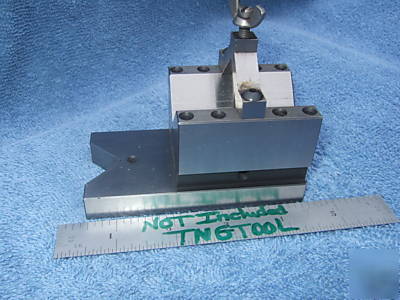

VERY HANDY FOR GRINDING EJECTOR PINS AND OTHER LONG ITEMS. EXCELLENT USEFULL BLOCK FOR SURFACE GRINDER OR BRIDGEPORT LIGHT MILLING WORK. WE HAVE USED ONE JUST LIKE IT ON A JIG-GRINDER AND EDM, THEY WORK VERY WELL. SEE PICS.
