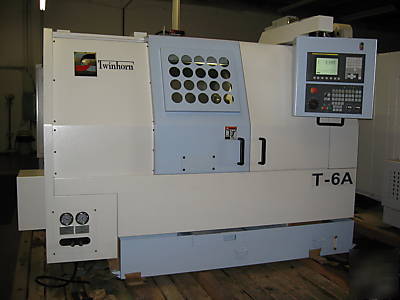

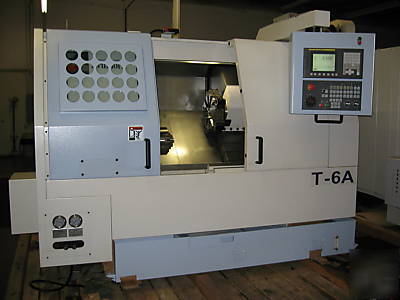

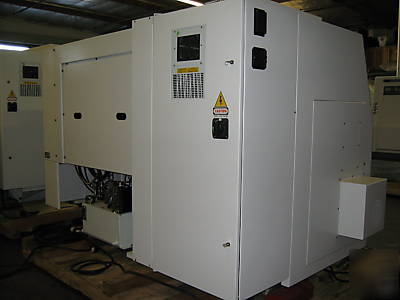

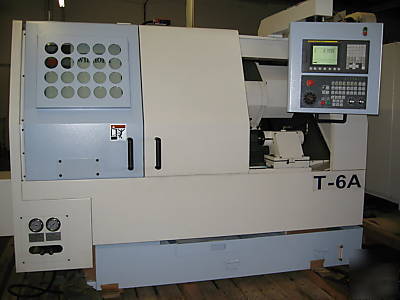

Twinhorn t-6A cnc lathe with fanuc oi-mate-tc
Fanuc Oi-Mate-TC / 320 Meters Memory Fanuc 20 HP Spindle Motor

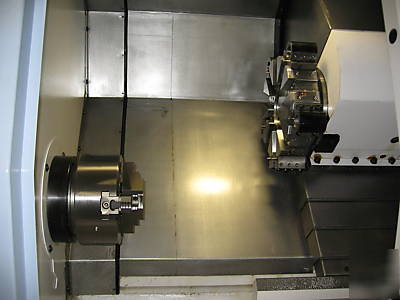

AC Digital Servo & Spindle Drivers 8 3 Jaw Hydraulic Chuck

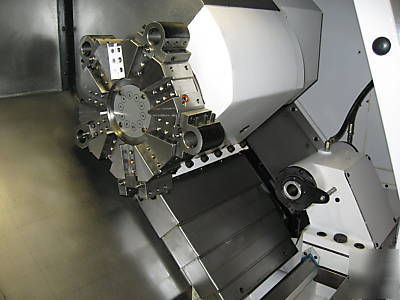

10 Station Servo Driven Turret Spindle Speed 4800 RPM
PCMCIA Slot for Memory Expansion Chip Conveyor & Cart
5 Set of Boring Bar Holder 1 Set of Turning Tool Holder
5 Set of Taper Block 2 Set of Soft Jaw
High Precision Linear Guideways Programmable Tailstock Quill
Meehanite Cast Iron Bed, Base & Headstock Auto Lubrication System
Heat Exchanger for Electrical Cabinet Pitch Error Compensation
Automatic Power off (M30) RS232 Interface
Differential Bed Ways Configuration Tool Kit / Work Light
Fanuc Operating & Maintenance Manual Operating & Electrical Manuals
One Year Machine Parts Warranty Two Year Control Warranty
Travel Z Axis - 21.65 (550mm)
Rapid Feed Rate X Axis - 472ipm
Rapid Feed Rate Z Axis - 787ipm
Positioning X Axis - 0.0004 / 4
Positioning Z Axis - 0.0008 / 12
Repeatability X & Z Axis - 0.0001 ( 0.003mm)
Swing Over Bed - 16.54 (420mm)
Swing Over Carriage Cover - 12.99 (330mm)
Distance Between Centers - 23.6 (600mm)
Maximum Turning Diameter x Full Length - 11.81 x 21.65 (300mm x 550mm)
Spindle Center Height - 36.22" (920mm)
Spindle Motor - FANUC AC Spindle Motor 12 / 7000i
Servo Drive Motor X & Z Axis - Fanuc IS 8 / 3000
Turret Tool Disk Diameter - 11 (280mm)
Turning Tool Shank Size - 0.75
Boring Bar Holder Size - 1.25
Turret Index Time (Station to Station) - 0.8 Seconds
Tailstock Quill Traverse - 3.94 (100mm)
Tailstock Quill Diameter - 2.95 (75mm)
Tailstock Quill Taper - M.T. 4
Floor Space - 68.90 x118.50 x72.83 (1750mmx3010mmx1850mm)
Power Requirement - 220V, 3 Phase, 60Hz, 30kVA, 75Amp
Machine Weight - 8,800 lb (4000 kg)
