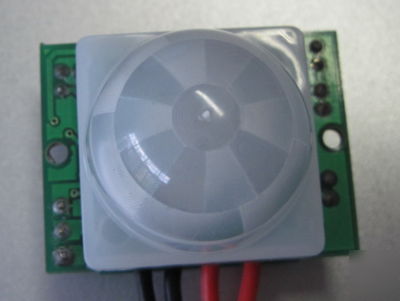

Pir motion detector switch 12V solar lights lamp relay
12V PIR Switch Motion Activated for Lamp...
- Micropower: quiescent current < 60 uA
- Time delay: 3-60 seconds ( can be adjusted , default: 3 s )
- Distance : 5 - 7 Meter ( can be adjusted )
- Trigger: L, Non-repeatable trigger / H, Repeat Trigger ( default )
- Turn off during daylight: Use CDS ( default: included , weld)
- Dimensions: 24 x 32 x 28 mm (0.945 x 1.26 x 1.1 inch)
- Work temperature: - 20 C ~ + 60 C
With PIR sensor, Fresnel lens, high sensitivity, sensor point of view big trigger the option of repeating and non-duplication of ultra-low static power consumption, ultra-small size. Reverse own protection, use more secure.
Note: The output load can not be shorted, not with a motor and other inductive load
* PIR Module, photoresistance (CDS)
