New adc advantage 6017 advanced bp monitor w/pc link

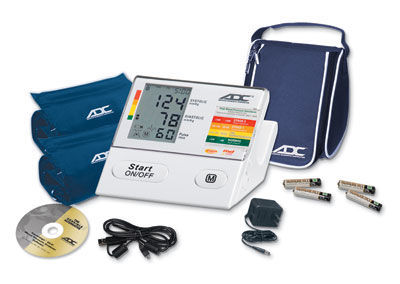

ADVANTAGE 6017 ADVANCED BLOOD PRESSURE MONITOR
Feature packed with average mode and PC link for truly consistent readings and ease of use. Our NEW 6017 with PC Link Analyzer Software which connects this monitor to any PC to download and print data, graphs charts, and tables od readings. The 6017 measures systolic, diastolic pressure, and pulse using Smart Logic Technology which determines ideal inflation levels - MAM Advantage Average mode automatically averages 3 readings for superior reporting accuracy. A built-in Irregular Heartbeat Detector gives a warning signal at the appearance of an irregular heartbeat. Traffic Light Indicator shows the range within which the indicated blood pressure value lies compared to National Standards. Advanced 2 zone memory with date and time stamp recalls last 99 readings for two different people. USB Cable for easy PC hook-up. 2 self adjusting latex-free D-bar cuffs (Adult & Large Adult). Auto-off to conserve (4)AA batteries (included) with AC adapter and deluxe storage case.
* Measures systolic, diastolic pressure, and pulse
* Smart Logic Technology determines ideal inflation level
* Automatic inflation and deflation control
* MAM Advantage Average mode automatically averages 3 readings for superior reporting accuracy
* Irregular Heartbeat Detection gives you a warning signal at the appearance of an irregular heartbeat
* Traffic Light Indicator shows you the range within which the indicated blood pressure value lies compared to National Standards
* Advanced 2 zone memory with date and time stamp recalls last 99 readings for two different people
* PC Link Analyzer Software connects your blood pressure monitor to your PC to download and print data, graphs, charts, and tables of your readings
* USB Cable for easy PC hook-up
* 2 Self-adjusting latex-free D-Bar cuffs (Adult & Large Adult)
* Auto-off to conserve (4) AA Batteries (included)
* Weight: 1.6lbs. (735 g) (with batteries)
* 6.29" (W) x 5.5" (L) x 3.8" (H) in
* 160 (W) x 140 (L) x 98 (H) mm
* Storage temperature: -4 F - 122 F (-20 to +50 C)
* Humidity: 15 to 90% relative humidity maximum
* Operation temperature: 50 F - 104 F (10 to 40 C )
* Display: LCD-Display (Liquid Crystal Display)
* Measuring method: oscillometric
* Pressure sensor: capacitive
* SYS/DIA: 30 to 280 mmHg
* Pulse: 40 to 200 per minute
* Cuff pressure display range: 0-299 mmHg
* Memory: Automatically stores the last 99 measurements for
* Measuring resolution: 1 mmHg
* pressure within 3 mmHg
* pulse 5 % of the reading
* a) 4 AA batteries, 1.5 V
* b) AC adapter 6 V DC 600 mA (voltage 4.5 V DC to 6 V DC)
* 850-6013 for arm circumference 9" - 13" (22.9 - 33.02 cm)
* 850-6013X for arm circumference 13" - 17" (33.02 - 43.18 cm)
Technical alterations reserved!
* Device standard: This device is manufactured to meet the European and United States standards
for non-invasive blood pressure monitors:
EN1060-1 / 1995, EN1060-3 / 1997, EN1060-4 / 2004, AAMI/ANSI SP10
* Electromagnetic compatibility: Device fulfills the stipulations of the International standard IEC60601
The B.H.S. (British Hypertension Society) has graded this product A/A or Recommended for clinical and home use.
This is the highest grading available for blood pressure monitors. Please see the B.H.S. website at www.bhsoc.org.
*Product using the identical measurement algorithm was tested by unaffiliated researches using B.H.S. study
protocol. Results on file and available upon request.
