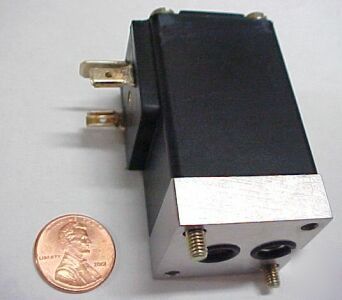

New burkert nc 24V dc stainless solenoid valves 24 vdc
These are manifold type valves. The valve ports are positioned over corresponding ports of a manifold. When the mounting screws are tightened, they press the valve base against the surface of the manifold, and the two o-rings form a leak free seal. Since all the plumbing is attached to the manifold, valves can be removed and serviced without disturbing any of the piping.
Circuit Function: Normally Closed
Compatibility: Air, Water, Neutral Gas, Light Oil, LP Gas
Voltage Variation Tolerance: +/- 10%
Certification: CE Rated for Hazardous Locations
Mounting Screws: .950" OC (adjacent corners) & 1.345" OC (diagonal corners)
To view Burkert's manual for these valves, Click Here (PDF File)
