Leybold sogevac SV25 rotary vane vacuum pump 3 phase

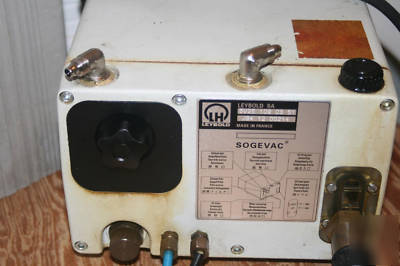

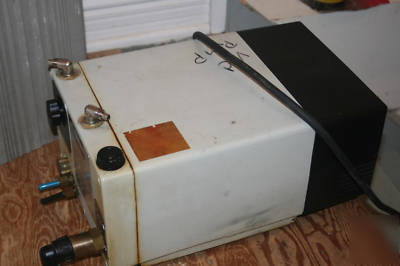

The Leybold Sogevac SV25 is a single stage 1.5 Horsepower, oil sealed vacuum pump that is designed for continuous operation over the working pressure range from atmosphere to less than 1 Torr. The Leybold Sogevac SV25, consists of the pump body oil casing and drive cooling system. The Leybold Sogevac SV25 , has built in exhaust filters, gas ballast valve, and an automatic oil return system. The Leybold Sogevac SV25 , is low noise, compact, low vibration, and easy to operate. This Leybold Sogevac SV25, is also easy to maintain, service and repair. These Leybold Sogevac vacuum pumps are used in a variety of industries such as packaging in the food preparation industry, degassing, thermal forming of plastics, vacuum drying, impregnation, leak testing, vacuum stirring and mixing just to name a few. Pumping Speed 17 CFM. Maintenance service, repair, oils and accessories for these Leybold Sogevac SV25 vacuum pumps are readily available. Comes with about a 5 foot cord (field landed - no plug). Has Swagelok fittings on inlet and outlet. Pump is fully operational, I am unsure of how many hours are on this pump, but they are easy to rebuild and will run for a long time. Here is a link to a company that rebuilds and sells them!! http:// /product.asp?pid=1829

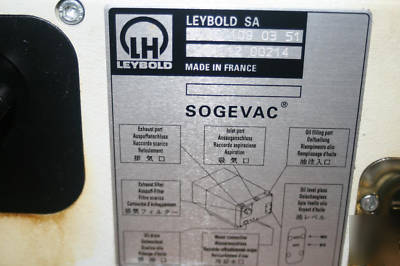

* Model Number SV 25 109 03 51
* Serial Number U94 12 00214
