17"/17.3" x 60" nardini "nodus" engine lathe #25691

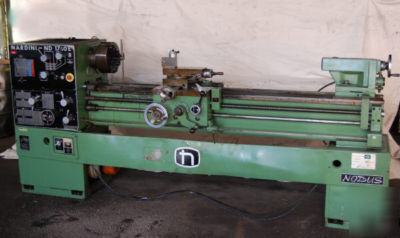

17"/17.3" x 60" NARDINI "NODUS" ENGINE LATHE
Serial No 323, Model ND1760E, Series "E"
Taper Attachment - 3-Jaw Chuck w/Jaws
Induction Hardened & Ground Bed Ways
Universal Gear Box (U.S. and Metric Threads)
Hole Thru Spindle...................... 2.03"
Swing Over Bed Ways, Rated............. 17"
Swing Over Bed Ways, Actual............ 17.3"
Swing Over Saddle Wings................ 15.375"
Swing Over Cross-Slide................. 10.625"
Distance Between Centers............... 60"
Cross-Slide Cross-Feed Travel.......... 9.75"
Top-Slide Travel....................... 5"
Tailstock, Spindle Diameter............ 2.375"
Tailstock, Spindle Travel.............. 8.625"
Tailstock, Spindle Taper............... #4 MT
(18) Spindle Speeds, Range............. 25 to 2000 RPM
(132) Carriage Long Feeds.............. .0021 to .0976 IPR
(132) Cross-Slide Cross Feeds.......... .001 to .0488 IPR
(54) U.S. Thread Changes, Range........ 2.75 to 42 TPI
(54) Metric Thread Changes, Range...... .4 to 18.4
(54) Modul Threads, Range.............. .2 to 3.5
(54) Diametral Pitch Threads........... 3 to 84
Main Motor, Horsepower................. 8/5 HP
Overall Dimension, L x W............... 9'10" x 3'4"
PRICE: F.O.B. OUR WAREHOUSE........... $12,500.00
