New schlage locknetics sxf 1500 proximity reader -

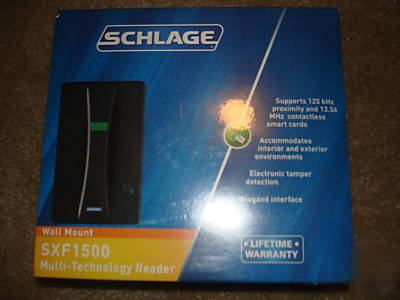

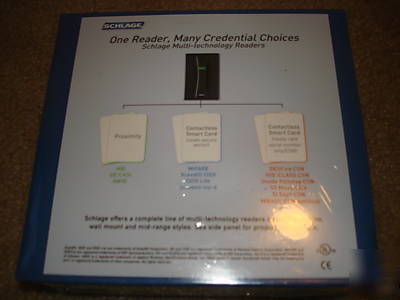

Brand New in Box - Ingersoll Rand Schlage Model SXF1500 Multi-Technology Reader Series
The SXF1500 series readers are the most flexible in the industry.Designed for universal mounting,the SXF1500 series readers mount on a single gang electrical box. The attractive low profile styling of the reader, combined with high performance, makes it the preferred choice for any environment. Finally,one series of readers handles all applicable ISO standards (14443 and 15693).
SXF1500 Multi-technology reader offers 125 kHz and 13.56 MHz technology in one reader. The SXF1500 is ideal for upgrades providing seamless transition from proximity technology to contactless smart card technology. The SXF1500 is the solution to economical migration to the latest smart card technology on a budget or a timeline.
The SXF1500 supports high security that provide multiple applications including access control ID numbers and biometrics. Additional security measures include mutual authentication and message authentication coding.
* Industry standard 125 kHz proximity and 13.56 MHz contactless smart card technologies
* Compliance with all applicable ISO standards
* Includes XACTT technology for easy migration (SXF1500 only)
* Modular design allows easy upgrade changes in the field
* Read ranges up to 4.5 inches
* Advanced tamper detection with optical sensor
* Accommodates interior,exterior,metal and non-metal environments
* Security/Key management creates several options to ensure the greatest choice between open or high security credential security
* 13.56 MHz Contactless Smart Card
* Current Req: Avg 110mA DC,Peak 160mA DC
* Cable Spec: 18AWG/6 Cond/Strd/Shld
* Dimensions (HWD): 5.1 x 3.25 x .76
* Operating Temperature: -31F to 151F
http://www.brightblue.schlage.com/pdf/Readers/readers_SXF1500.pdf
