New 60KW induction heater machine heat treat furnace
60KW induction Heater machine heat treat furnace
Simple installation, only required main power and water in/out for cooling
Power level control via front panel
Full protection against over power, over voltage, over temperature, cooling water pressure etc.
Extensive front panel machine control
You get all item show in the picture, the unit is brand new. Be sure compare your purchase and find it this included this important features:
1. separated head unit for high performance, reliability and flexibility.
2. Included 4 style of heating coil, ready for heat treat your parts
3. temperature keep setting so the unit control the preset current apply to the object
4. constant current/constant power setting
What so important of the separated head unit.
Other similar product on the market try to reduce the cost by intergated the high temperature output transformer inside the main unit. OUR system separate the head transformer unit just like our larger industrial 30kw , 60kw machine.

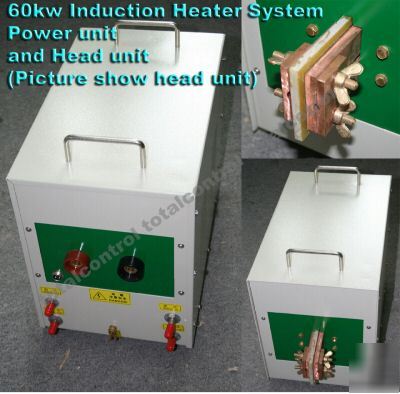

The special upgrade design of this unit has a separated Head unit, this head unit host the high frequency transformer and the water cooling system, this enable this unit has much stable operation and lower operation temperature, therefore extend the reliability of the machine. You only see this arrangement in 30kw+ machine, but only at JLW offer this high performance version with separated head unit.
Another advantage of this feature is, if you using the unit for heat-treat parts, the head unit is easily mobilized, which you can install it on the rail and then can process long parts. The cable allow you to move around from the main unit around 2 meter of range. Which more then enough of most parts.
Electronics main unit can be place away from the cooling oil or water, a much more safe and reliable setup.

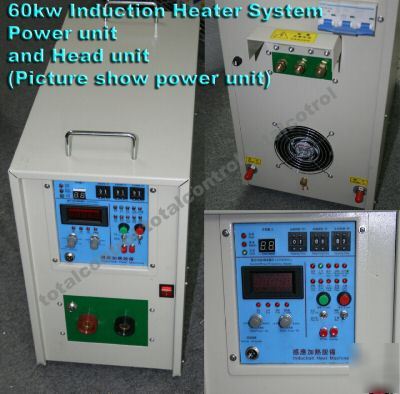

1 x Main 60Kw control unit ( 480V 3 phase power input)
1 x Head unit ( the high frequency transformer head )
2 x Head unit power cable ( red & Black)
Input Voltage: 480V single Phase
Maximum Oscillate Power: 60KVA
Output Oscillate Frequency: 20-80KHz
Heating Time: 0.1-9.9 seconds or 1-99 seconds
Retain Time: 0.1-1-9.9 seconds or 1-99 seconds
Colling Time: 0.1-9.9 seconds or 1-99 seconds
Cooling Water Pressure > 0.2MPa
Cooling Temperature < 40C (104F)
so you will get the support you need from getting the machine to production!!
Our professional staffs are ready to design and help you to design /quote your Custom Mandrel or fixture needed, please tell us your need.
