LM2575T adj 1A switching voltage regulator lot of 10

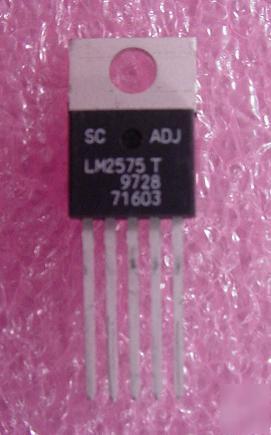

LM2575T Adj 1A Switching Voltage Regulator
* 1A Miniconverter Switching Regulator
DESCRIPTION: The LM2575 series switching regulators are monolithic integrated circuits designed for use in "buck" or "buck/boost" regulator applications requiring accurate output voltages over combined variations of line, load and temperature. This unique series greatly simplifies switching power supply design. The LM2575 has a maximum output current of 1A.
The LM2575 series of miniconverters include a switching regulator and compensation network all within the same package. Just add a choke, catch diode and two capacitors to obtain an efficient DC-to-DC converter. The current limit and thermal shutdown features of the LM2575 series fully protect the device against overstress conditions.
The LM2575 series offers an alternative to popular 3 terminal linear regulators by providing higher efficiency with reduced heatsink size. In many applications a heat sink will not be required.
* Pin for pin replacement for National's LM2575 series.
* DC-to-DC buck or buck/boost converter requiring only 4 support components.
* Wide input voltage range, 4V to 40V
* Inhibit/enable control pin
* Micro controller power supplies
* Instrumentation power supplies
Pricing is for a LOT of 10 parts.
