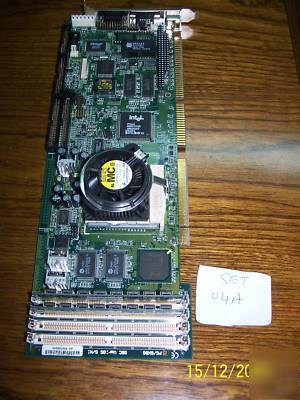

Industrial sbc P5/6X86 embedded card pc-104 pc-560-G5
Backplane Board also available for this SBC separately
Industrial Single Board Computer
PENTIUM EMBEDDED CARD / COMPUTER
P5/6x86 SBC Ver. 05 or PC-560-G5
PC-104 BUS for industrial or developers
Processor Installed INTEL PENTIUM 1 MMX 200Mhz 2.8v
S/N. E8-990300046 P/N. 96055005E
Further Specifications and Information about this Card
http:// .tw/download/manual/SBC-HC/560/560m1-G5A.pdf
75/90/100/120/133/166/200/233/266MHz clock generator.
2.8V/2.9V/3.2V/3.3V/3.5V voltage regulator.
Two 72pin SIMM sockets on board.
L1 Cache: Depended on CPU type
L2 Cache: On board 512KB Pipeline Cache
CMOS data back up from BIOS set or BIOS default.
Dallas DS 12887 Real Time Clock.
Award Flash BIOS for plug & play function.
Easy update 128/256KB flash EEPROM.
One mini DIN connector, Support keyboard or PS/2 Mouse by jumper selection One additional 5 pin external keyboard connector
Internal PCI Bus for VGA, and IDE.
Support VGA for CRT & Panel LCD
VGA BIOS combines in 128/256KB flash ROM together with system
Support 41-pin connector 640 x 480, 800 x 600 resolutions on LCD Panel.
Panel support Color STN, TFT, EL.
CRT & LCD Panel Display simultaneously.
I / O port 0443H to Enable watchdog.
I / O port 0441H to Disable watchdog.
Time-out timing select 0 / 8 / 16 / 24 / 32 / 40 / 48 / 56 / 64 / 72 / 80 / 88 / 96 / 104 / 112 / 120 sec
One IDE port supports 2 Enhanced IDE devices.
Supports up to two Floppy Disk Drives, 3.5" and 5.25" (360K / 720K /
Two high speed 16550 Compatible UARTs with Send / Receive 16 Byte
FIFOs. COM1: RS-232; COM2: RS-232/422/485
Programmable Baud Rate Generator.
Software support by BIOS setup.
Hardware support by switch control.
Turbo and green function mode.
