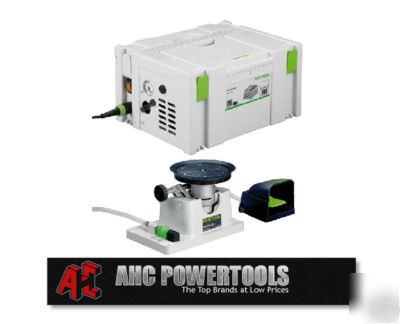

Festool 712257 vacuum pump and clamping unit
FESTOOL 712257 VACUUM PUMP AND CLAMPING UNIT, VAC SYS SET SE1 GB
A new feeling of freedom: clamping without any restrictions
The vacuum clamping system VAC SYS enables you to machine the workpieces from all sides in a single working step. No time-consuming readjustment. Work on the main surface, along the edge or along curves that require 360 rotation of the workpiece and a swivelling range of 90 . The system redefines the concept of freedom and creates the perfect conditions for healthy, ergonomic working progress.
A powerful yet gentle hold: clamping without a trace.
Unlimited possibilities: with the correct accessories.
Clever accessories for the new vacuum clamping system VAC SYS will help you overcome any challenge. You can use two clamping units at the same time for larger, heavier workpieces: simply attach clamping unit 2 to clamping unit 1, the vacuum pump and the foot valve. Four different vacuum pads can be used individually for different workpiece sizes and the new multifunction table MFT 3 provides a versatile mobile work space.
Connect clamping unit 1 and clamping unit 2 for even greater flexibility. Combine the units with the VAC SYS to machine particularly large, heavy or curved workpieces efficiently and to a very high standard.
Vacuum pads are available in four different sizes, allowing you to clamp curved and undulating workpieces securely. You can change the vacuum pads to match the workpiece shape and size without using tools.
You can connect the VAC SYS to the new multifunction table MFT 3 using an adapter plate and fold the VAC SYS down when not in use. A practical work surface for the workshop and mobile applications on the construction site.
* Pump capacity: 2.7 m3/h at 50 Hz, 3.5 m3/h at 60 Hz
* Type of protection: IP 5x (protected against dust and splash water)
* Dimensions: 395 x 295 x 210 mm (SYSTAINER SYS 3)
* Working conditions (temp. / air hum.): 0 C to +50 C / 30 % to 95 % (minimum duration of extreme climate conditions: 30 days)
* Storage conditions (temp. / air hum.): 0 C to +60 C / 30 % to 95 % (minimum duration of extreme climate conditions: 30 days)
* Minimum vacuum: 810 mbar/ 81 %
* Power consumption: 160-200 W at 50 Hz, 200-230 W at 60 Hz
* Rotational speed: 2800 rpm at 50 Hz, 3300 rpm at 60 Hz
* Runtime under normal conditions: 5000 - 8000 hours
* Permissible use of pump: Do not operate in excess of 2000 m above sea level
Includes: Vac Sys vacuum pump in Systainer SYS 3, in a carton, Vacuum clamping unit Vac Sys VT D 215mm, Vacuum hose and foot valve in Systainer SYS 4.
