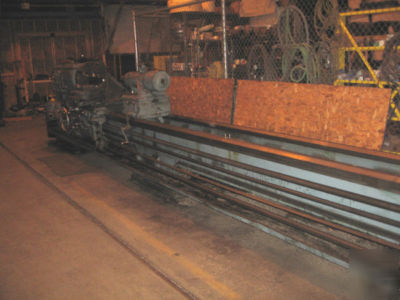

36.5" x 216" (18') monarch engine lathe #25770
36.5" x 216" (18') MONARCH ENGINE LATHE
New 1952, Serial No 36375, Model 25N,
Hole Thru Spindle...................... 2.2"
Swing Over Bed Ways.................... 36.5"
Swing Over Cross-Slide................. 24"
Distance Between Centers............... 216"
Tailstock, Spindle Diameter............ 4.875"
Tailstock, Spindle Travel.............. 11"
Spindle Speeds, Range.................. 8 to 405 RPM
(48) Carriage Long Feeds............... .0038 to .240 IPR
(48) Thread Changes, Range............. 3/4 to 46 TPI
Main Motor, Horsepower/RPM............. 40 HP
