(15) NE555 LM555 555 - the most versatile ic on earth

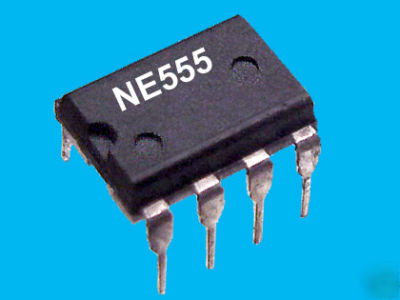

The NE555 / LM555 is the world's most popular timer IC. It's probably the most popular IC of all. Compact, simple circuit design. Tons and tons of resource literature. Check the excellent AN170 and other links below, or Google search for literally thousands of application sites with circuits galore.
* Timing from Microseconds to HOURS
* Precision Pulse Generation / Timing
* Use a single 4 to 16 VDC supply
* Excellent temperature stability 0.005% / C
* Monostable or Astable Operation
* Countless Application and Information Sources
Note: IC's may be marked either with the equivalent 'NE' or 'LM' prefixes, depending on the manufacturer.
Application Note AN170: NE555 AN170 (356K PDF)
Here are just a few circuit application links to spur your imagination.
http://www.doctronics.co.uk/555.htm
http://home.cogeco.ca/~rpaisley4/LM555.html
http:// /T/timers.htm
http:// /555-circuits.htm
http:// /PDFs/column008.pdf
http:// /PDFs/column009.pdf
Warning: Don't let too many of these little fellas interact with each other because they'll organize and when the timing is right, they will take over the world!
