Welch allyn - suretemp® plus 690 digital thermometer

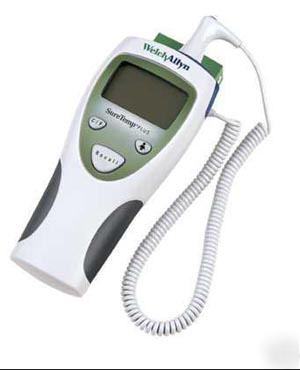

SureTemp Plus 690 Digital Thermometer
* Provides 4-second oral, 10-second pediatric axillary temperatures (for children 17 years and younger),10-second rectal, and 15-second adult axillary temperatures (for 18 years and older).
* Monitor mode capability for measuring 3-5 minute temperatures.
* Used probe covers may be ejected automatically.
* Large LCD displays temperatures in Fahrenheit or Celsius.
* Has last temperature recall capability
* Waterproof, stainless steel probe shaft.
* Convenient storage housing for 25 probe covers.
* Color-coded, interchangeable and removable probe well to minimize the risk of cross-contamination.
* User-selectable icon and/or words for identification of thermometer modes.
* Battery life indicator (uses 'AA' batteries)
* Calibration Accuracy: 0.2 F( 0.1 C) (Monitor Mode)
* Adult Axillary (18 years and older): Approx. 15 secs.
* Pediatric Axillary (17 years and younger): Approx. 10 secs.
* Rectal: Approx. 10 secs.
* Unit Dimensions: 8.46 x 3.18 x 2.43 (215mm x 81mm x 62mm)
* Weight: 12.6 ounces (357 grams)
* Ambient Temperature Range: 50.0 F(10 C) - 104 F (40.0 C)
* Patient Temperature Range: 80.0 F(26.7 C) - 110 F (43.3 C)
* Power Source: (3)1.5Vdc AA batteries
* Battery Life: Approx. 6000 temperatures
