Victor SR311 high flow CO2 flowmeter 0781-0353

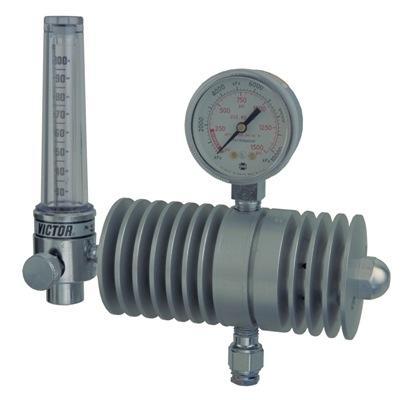

Victor SR311 High Flow CO2 Flowmeter 0781-0353
Victor Equipment SR311 High Flow CO2 Flowmeter MFG # 0781-0353 The SR311-320 CO2 Flowmeter adjustable pressure gauge is specifically designed for use with standard (non-siphoned) carbon dioxide cylinders. Our unique design incorporates aluminum heat sink fins which permit high flow rates without freeze-up or noticable change in pressure or flow. Features:
* Machined aluminum body and housing cap
* Self reseating relief valve (Not designed to protect downstream apparatus)
* Outlet Connection: 5/8" - 18 RH (F)
* High gas withdrawal rates my cause regulator freeze up and will require cylinder manifolding. Consult your gas supplier. See Meco Gas Heater.
* A regulator equipped with a flow gauge is not accurate when a back pressure in excess of 2 PSIG exists at the outlet.
* Back pressure is caused by a restriction in the apparatus downstream of the flowgauge.
* Metering valves, kinked hoses or even very long hoses are restrictions that can cause back pressure.
* In applications where back pressure in excess of 2 PSIG can be expected, a regulator equipped with a flowmeter should be used.
