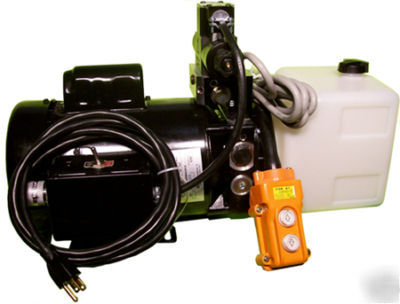

Tube bender hydraulic pump - 115V ac electric hydraulic
-Ideal for hydraulic tube bender such as JD2 or Pro Tools
* Motor - 115/208-230VAC; 17.8/9.0 - 8.9 Amps; 60 Hz
3450 RPM; 1PH; 1.5HP; 56FR; Continuous Duty; TEFC
* Pump - A.F.C. 0.8 CC/REV. (.049 CU.IN./REV.)
* Relief - Adjustable Relief Valve Set At 4300 PSI
* Endhead - 3/8 NPTF Pressure-Return Port
(2) 3/8-16 Tap x 1.38 Deep Mounting Holes
D03 Valve Manifold Block with 9/16 SAE Ports "A" and "B")
* Tank - Plastic 1.0 Gallon (193 CU.IN. Usable)
Horizontal Mount With Breather-Fill Port
* Unit Performance - 0.57 GPM AT 4000 PSI AT 115 VOLTS AC & 18 AMPS AT 45 CENTISTOKES (200 SSU)
