Tek tektronix CG551AP /pulse hd scope calibrator refurb

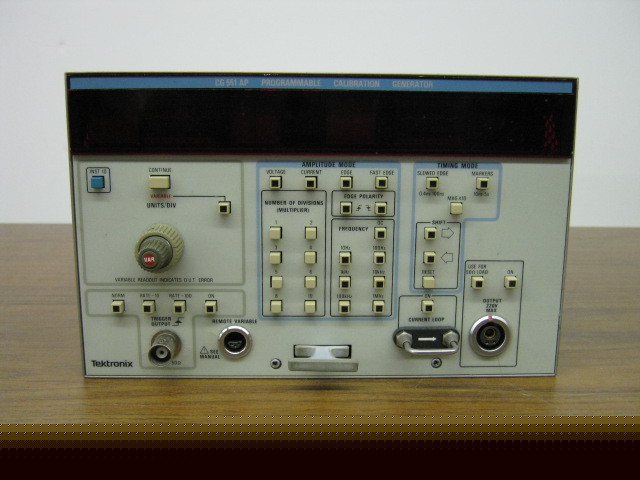

Tek Tektronix CG551AP /Pulse Hd Scope Calibrator Refurb
The Tektronix CG551AP is a microprocessor based oscilloscope calibration generator that can be used as part of a computerized system for the calibration and verification of major oscilloscope parameters.
* Parameters: vertical gain, horizontal timing and gain, vertical bandwidth/pulse characteristics, probe accuracy and compensation, current probe accuracy and calibrator output accuracy
* Voltage: 40 V to 200 V, accuracy 0.25% 1 V
* Markers: 10 ns to 5 s, accuracy 0.01%
* Slewed Edge Timing: 0.4 ns to 100 ns
* Pulse Head Rise Time: 200 ps
* 100 Hz to 100 kHz frequency range
* 100%, 20%, 2%, 0.2% distortion ranges
* Requires TM506 Mod JB, TM515 Mod UB (sold separately)
