New portable surface roughness tester mitutoyo sj-210
You can see this unit on Mitutoyo's website at:
http:// /pdf/1985_SJ-210.pdf

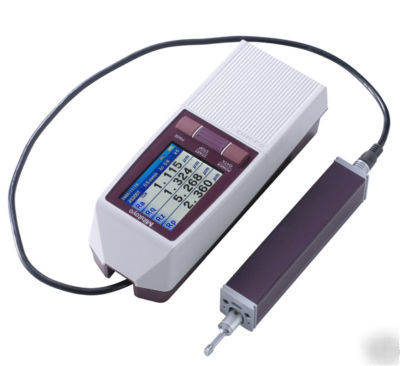

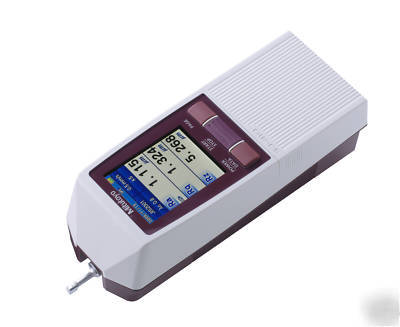

Here are the particulars on the NEW Mitutoyo SJ-210 Portable Surface Roughness Tester:
The new Surftest SJ-210 portable surface roughness tester combines high accuracy and measurement speed with numerous innovative features creating a new class leader in surface inspection.
* 2.4" Color LCD Display includes backlighting and over-size fonts
* The SJ-210 Employs a Micro-SD card for storage of up to 10,000 results and support of screen capture
* Display direction can be changed to be read vertically or horizontally right and left handed.
* Color tolerance judgements, evaluation curves and all data can be displayed in one of 16 languages
* Self-timed measurements supported
* Security management supports password protected function lock
.5 inch (17.5mm *includes pre/post travel)
14200 in (-7900 in~+6300 in) [360 m (-200 m~+160 m)]
.01, .02, .03 in/s (0.25, 0.5, 0.75 mm/s)
1000 in / .08 in (25 m / 0.002 m)
Primary profile (P), Roughness profile (R ), DF profile, R-Motif
Ra, Rq, Rz, Ry, Rv, Rt, R3z, Rsk, Rku, Rc, RPc, RSm, Rmax*1 Rz1max, S, HSC, RzJIS*2, Rppi, R a, R q, Rlr, Rmr, Rmr(c ), Rc, Rk, Rpk, Rvk, Mr1, Mr2, A1, A2, Vo, Rpm, tp, Htp, R, Rx, AR
Max. value, / 16% / standard deviation
.003, .01, .03, .1in (0.08, 0.25, 0.8, 2.5 mm)
x1, x2, x3, x4, x5, x6, x7, x8, x9, x10, arbitrary length
10-600 sec (Auto-sleep not valid when AC adaptor is used.)
USB, SPC, Printer output, RS-232C, Foot switch, MicroSD
2.4" color TFT with back light (320 x 240 pixels)
JIS'82, JIS'94, JIS'01, ISO, ANSI, VDA
Vertical, horizontal (invertible), curve, graph, value
4hrs. for full charge (approx. 1000 measurements)
Mitutoyo: Aurora, IL) Mitutoyo America Corp. announces the new Surftest SJ-210 portable surface roughness tester. Numerous innovative features combined with high accuracy and a competitive price makes this instrument the new class leader.
The Surftest SJ-210 s large, 2.4-in. color LCD display includes backlighting, over-size fonts, and the unique ability to reorient screen content to be read vertically or horizontally, left- and right-handed. Color tolerance judgments, evaluation curves and all data can be displayed in one of 16 languages. Self-timed measurement and optional foot switch facilitate smooth, consistent operation. Up to 10 measurement conditions can be registered and the 10 most recent trace results are stored automatically. The SJ-210 employs a micro-SD card for storage of up to 10,000 results and support of screen capture. Both USB and RS-232C connectivity is supported. Security is managed via a password lock.
With high accuracy (a resolution of 0.0016 m at a measurement range of
25 m), a fast measurement speed (up to a max. of 0.75 mm/sec), a selection of nine exchangeable detector tips and features, such as gear tooth surface detection, the Surftest SJ-210 s flexibility and high throughput make it ideal for any manual surface roughness inspection task.
