New cutler hammer AN56AN0AC - nema- reversing starter -

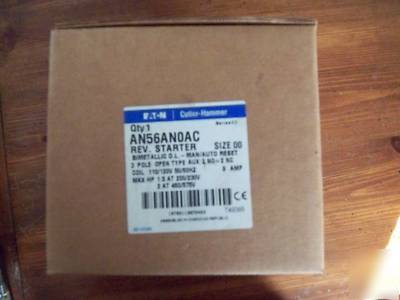

CUTLER HAMMER AN56AN0AC NEMA SIZE 00 REVERSING STARTER/CONTACTOR - NEW IN ORIGINAL FACTORY PACKAGING
WITH BIMETALLIC OVERLOADS - MAN/AUTO RESET
Overload Heaters not included.

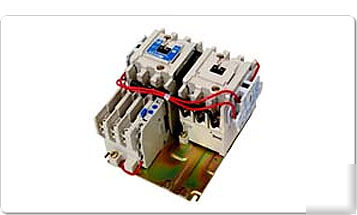

Three-phase, full voltage magnetic starters are used primarily for reversing of 3-phase squirrel cage motors.
They consist of two contactors and a single overload relay assembled together.
The contactors are mechanically and electrically interlocked to prevent line shorts and energization of both contactors simultaneously.
Each contactor (Size 00 8) supplied with one NO-NC side mounted contact block as standard. NC contacts are wired as electrical interlocks.
*Bimetallic Ambient Compensated Overload relays available in three basic sizes covering applications up to 900 hp reducing number of different contactor/overload relay combinations that have to be stocked.
These overload relays feature:
Selectable Manual or Automatic Reset operation.
Interchangeable heater packs adjustable 24% to match motor FLA and calibrated for 1.0 and 1.15 service factors.
Heater packs for smaller overload relay will mount in larger overload relay useful in derating applications such as jogging.
Load lugs built into relay base.
Single-phase protection, Class 20 or Class 10 trip time.
Electrically isolated NO-NC contacts (pull RESET button to test).
The C396 is a self-powered, robust electronic overload designed for integrate use with Freedom NEMA contactors.
Tiered feature set to provide coverage specific to your application.
Broad 5:1 FLA range for maximum flexibility.
Coverage from 0.05 1500 Amps to meet all your needs.
Long life twin break, silver cadmium oxide contacts provide excellent conductivity and superior resistance to welding and arc erosion. Generously sized for low resistance and cool operation.
Designed to 3,000,000 electrical operations at maximum hp ratings up through 25 hp at 600V.
Steel mounting plate standard on all open type starters.
Wired for separate or common control.
JUST REDUCED FOR QUICK SALE - NOW ONLY $129.99
