20" x 120" monarch lathe;taper, threading, coolant

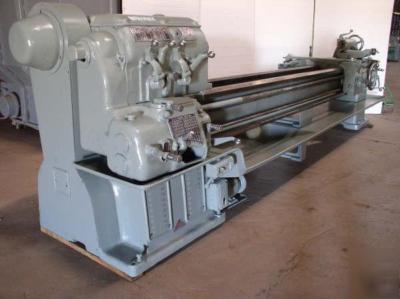

(1) Used 20" x 120" MONARCH Engine Lathe; Model #: 18C; S/N: 30303
Swing Over Bed......................................... 20.5"
Swing Over Cross Slide............................. 13.5" nominal
Distance Between Centers......................... 120" max.
Spindle Hole.............................................. 1 5/8"
Spindle Speeds (16)................................... 12-487 R.P.M.
Threading Ranges (60).............................. 2-120 T.P.I
Feeding Ranges(60)............................ .1683- .0028" (reverse of spindle)
Lead Ranges............................................... N/A
Diameter of Faceplate.......................... N/A
Main Drive Motor....................................... 10 HP
Electrical Characteristics............................ 480 VAC / 3 PH / 60 Cycle
Overall Dimensions:................................. 50" Wide x 192" Long x 57" High
Weight:..................................................... 14,000 lbs. (est.)
Price:......................................................... $12,500 ................F.O.B..................Casa Grande, Arizona.
