#10034 - doall model 3612-3 vertical band saw

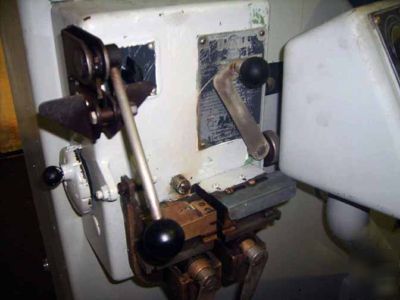

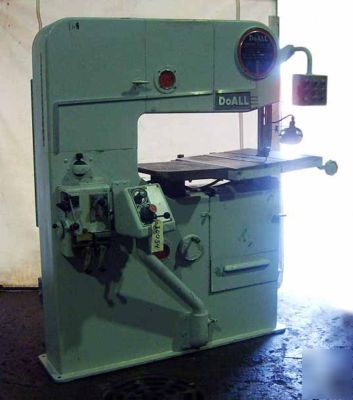

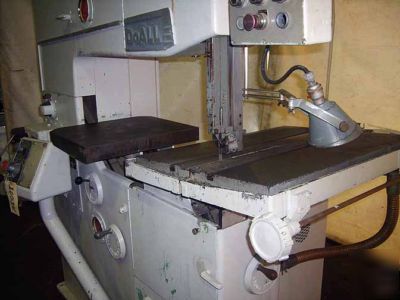

DOALL MODEL 3612-3 VERTICAL BAND SAW
Throat capacity (Band to column) 36"
Work height (maximum distance under guides) 12"
Table size (main) (2 T-slots) 24" F-B x 20" L-R
Table weight capacity 1,000 lbs.
Table size (auxillary) 16-3/4" F-B x 20" L-R
Blade speed (infinitely variable through 3 speed transmission, coupled with speed master variable speed unit) 35 - 5200 SFPM
Overall dimensions 73" F-B x 59" L-R x 78"H
3 HP 3/60/220/440 Main drive motor
Blade shear (capacity - 1/16" to 1")
