Hobart handler® 210 mig welder 220 volt with spool gun

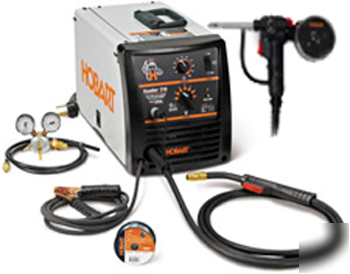

Hobart Handler 210 plus 300199 Spool Gun
Included in this package is the DP-3035 direct plug-in 10' length spool gun. It alleviates problems associated with feeding soft aluminum wire, and is also useable with mild or stainless steel welding wires. The spool gun circuitry is already built into the Handler 210 so no extra kits or controls are required. Just plug the spool gun lead into the feedhead, attach the trigger lead and flip the switch on the inside panel for spool gun operation. Install the correct wire and gas for the job and its ready to go.
The Handler 210 comes set up to weld with flux cored self-shielding wire (great for outdoor welding projects) or to weld with solid wire (just change the polarity and add the preferred wire and shielding gas). The 7 output voltage selections and continuous wire feed speed control permit fine tuning the parameters for improved arc performance with a smoother arc, less spatter, better bead appearance and minimal post-weld cleanup. Convenience features include an internal storage area for spare tips and a "no tools" quick-change drive roll system with dual groove feedrolls to make changing wire diameter easy. A self-resetting thermal overload system protects the Handler 210 in the toughest applications.
Comfortable 10 ft. (3 m) H-14 MIG welding gun
Dual gauge regulator and gas hose
10 ft. (3 m) work cable with clamp
Sample spool of .030 in. (0.8 mm) self-shielded flux cored welding wire
8 in. (203 mm) wire spool adapter
Extra .030 in. (0.8 mm) contact tips
Owner's Manual with parts lists, installation, operation, maintenance and MIG welding guidelines.
Rated Output: 130 A, 23 VDC at 30%
Max. Open Circuit Voltage: 34 V
Dimensions: H: 12-3/8 in (315 mm) W: 10-5/8 in (270 mm) D: 19-1/2 in (495 mm)
Wire Feed Speed Range: 40 - 680 IPM, 60 - 770 IPM at no load
Amperes Input at Rated Load, 60 Hz 230 V 24 KVA 5.33 KW 4.6
