Icp con i-7024 4 channel 14 bit analog output module

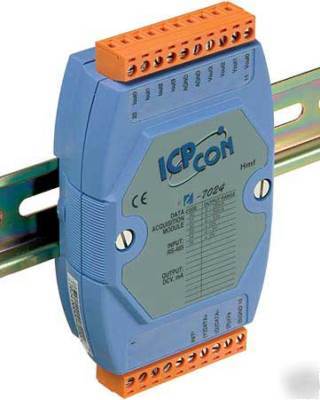

ICP CON I-7024 4 Channel 14 Bit Analog Output Module
The I-7000 Series Modules from ICP DAS provide a wide range of industrial control signals and systems. The I-7000 PC-based data acquisition modules are very flexible to meet all kinds of industries and applications. These modules can provide PID control, motion control, data acquisition, and many other complex functions including data log functions. Each module is addressable allowing up to 256 units to be linked together via a two-wire RS-485 connection.
* Wide voltage input range of 10 to 30VDC
* Supports baud rates up to 115.2 Kbps
* 3000V isolation between modules and the network
* Dual watchdog timers: module s firmware, host computer traffic
* User-friendly programming software, utilities and tools provided on CD
* DIN-Rail and panel mounting adapter hardware provided
* Dimensions: 12.3 x 7.2 x 3.3 cm (4.8 x 2.8 x 1.3 in)
* Output Type : 0-20mA, 4-20mA, 0-5V, +/- 5V, +/-10V & 0-10V
* Accuracy : +/- 0.1% of FSR
* Zero Drift : Current Output : +/- 0.2 A/ C
Voltage Output : +/- 30 V/ C
* Span Temperature Coefficient : +/- 20ppm/ C
* Programmable Output Slope : 0.125 to 2048mA/second
* Current Load Resistance : External 24V = 1050 ohms
* Photo Isolation : 3750 Vrms
* Intra-module Isolation, Field to Logic : 3000Vdc
* Baud Rate : 1200 - 115200bps
* LED Display : 1 LED as Power/Communication indicator
* Power Input : +10 to +30 Vdc
* Operating Temperature : -25 to +75 C
* Storage Temperature : -40 to +85 C
* Humidity : 5 - 95% non-condensing
