Ge type sb-1 rotary switch 3-position 16SB1CA7X16

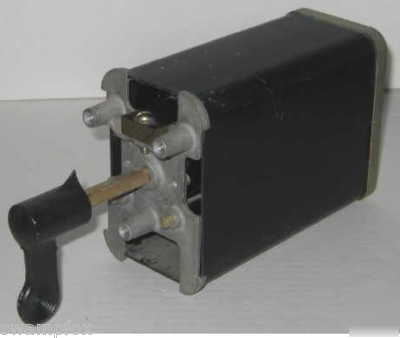

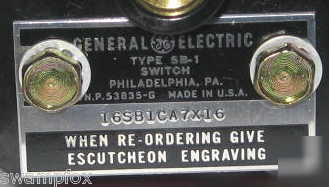

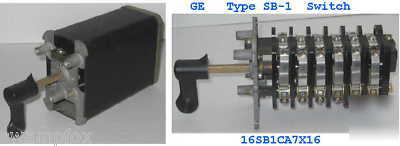

General Electric Type SB-1 Rotary Switch

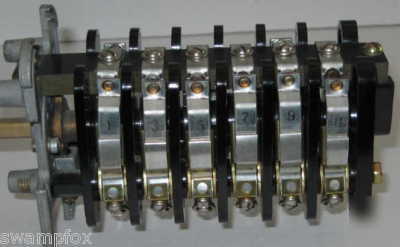

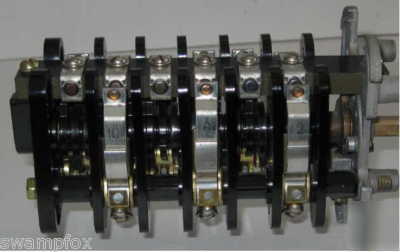

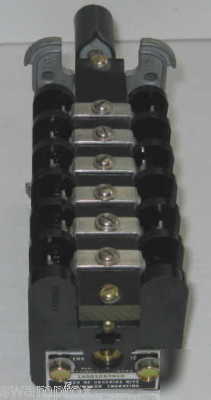

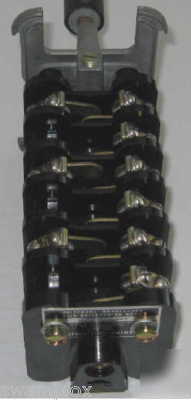

The handle has three positions. There is no faceplate. I am not sure how to number the contacts, as there are six on the odd-numbered side and only 3 with even numbers marked on them (with spaces for three more). Also, I don't know if the top connectors are counted.
The three position switch closes these contacts (the others being open):
This item weighs 2-1/2 pounds. Total overall length is 9-1/2 inches (not counting cover locking nut on the back). Boxed (switch cover) section measures about 6-1/4" wide, 4-3/4" deep, 4-3/8" tall.
This probably costs in the 3-digit range when new, but will be a whole lot cheaper here.
