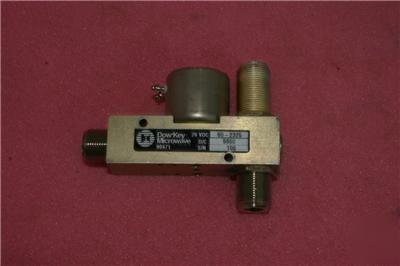

Dow-key microwave model: 60-2325 28VDC
DOW-KEY MICROWAVE MODEL: 60-2325 28VDC
The DowKey 60 Series coaxial relays are ruggedly constructed and designed for operation to a maximum power level of 1 kilowatt. They have been the standard for air traffic control and two way radio systems for over forty years.
Also available in the 60 Series is a patented, high isolation option ("G" option) for transmit-receive applications. This option leaves the unused input open, and increases the isolation on the N/C connector to 85 dB at frequencies up to 500 MHz. This option reduces the maximum power rating of the N/C connector to 20 Watts, and will increase the VSWR of this terminal above approximately 400 MHz. They are available with or without two form "C" auxiliary contacts.
Typical applications for the 60 Series include:
* Transmit-Receive Switching
* Communication Antenna Switching
* Hot Standby Transmitters or Receivers
No Auxiliary/Indicator Contacts
Mechanical Life Million Cycles Without Hot Switching
N, High Isolation (NC port only)
