David kopf 720 needle pipette puller

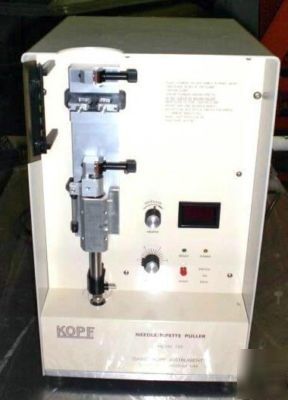

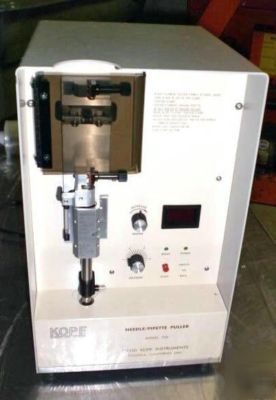

David Kopf 720 Needle Pipette Puller
The 720 Needle Pipette Puller is the ideal instrument for the busy laboratory where a number of pipettes are required. This unit is easy-to-use, versatile and a reliable vertical pipette puller with excellent repeatability.
By setting or adjusting values for the various parameters in the pulling sequence, you can vary the length, taper and tip to achieve an almost endless variety of shapes and sizes.
Model 720 will repeatedly pull micropipettes of the configuration for which it has been set. This is possible because of the ability to control the parameters in the pulling sequence and the vertical slide mechanism. Parameter controls include a heater control knob and digital display adjustable to 0.1 resolution, DC regulated solenoid control and optical switch with adjustable flags to set the length of gravity fall. These controllable parameters coupled with heater configuration allow a wide variety of pipettes to be pulled.
Small fluctuations in heater temperature can significantly affect the shape of a pipette during a pulling sequence. To prevent this, Model 720 has been designed to be less susceptible to line voltage changes. Heater voltage is divided into 20 units with a resolution of 0.1 units.
Another factor which can adversely affect pipette shape is residual heat in the heating elements. When using platinum alloy filaments, Model 720 helps eliminate this problem in several ways. First, the heater goes off the instant the solenoid is activated, and since the unit is of vertical design, any residual heat rises away from the tips. Second, platinum/iridium filaments have an extremely low thermal mass and cool very rapidly. Third, the tip of the pipette is pulled below the heater elements where there is no residual heat. These solutions are so effective there is no need for air jet cooling.
* Easy-to-use, versatile and reliable with excellent repeatability.
* Controllable parameters for a variety of pipette configurations
* Tips of .25 microns or less can be obtained.
* Can be used with a variety of heater configurations.
Slide mechanism employs super accurate bearing components, as have all Kopf Needle Pipette Pullers.
Pulls pipettes vertically to help assure straight, concentric shapes.
* Faceplate protects heater from drafts to ensure reproducibility.
* Small, compact size takes up less than a square foot of bench space.
* ize: 9 W x 14 H x 11 D
* Power Requirements: 100/120/220/240 VAC, 50-60 Hz via rear panel entry module with appropriate power cord.
* Digital Display: Three digits, resolution of tenths.
* 0-19.5 units with resolution of 0.1 units.
* Solenoid Current: 0-5 amp DC regulation.
* Optical Switch: Fixed location with adjustable flags.
* Fuses: 4 amp, 1.5 amp (100/120 VAC); 3.15 amp, 1.6 amp (220/240 VAC)
Fully operational, email me at ****@pacbell.net for a PDF data sheet to review. Check out my other listings, I also have Kopf 730 and Sutter pipette pullers available.
